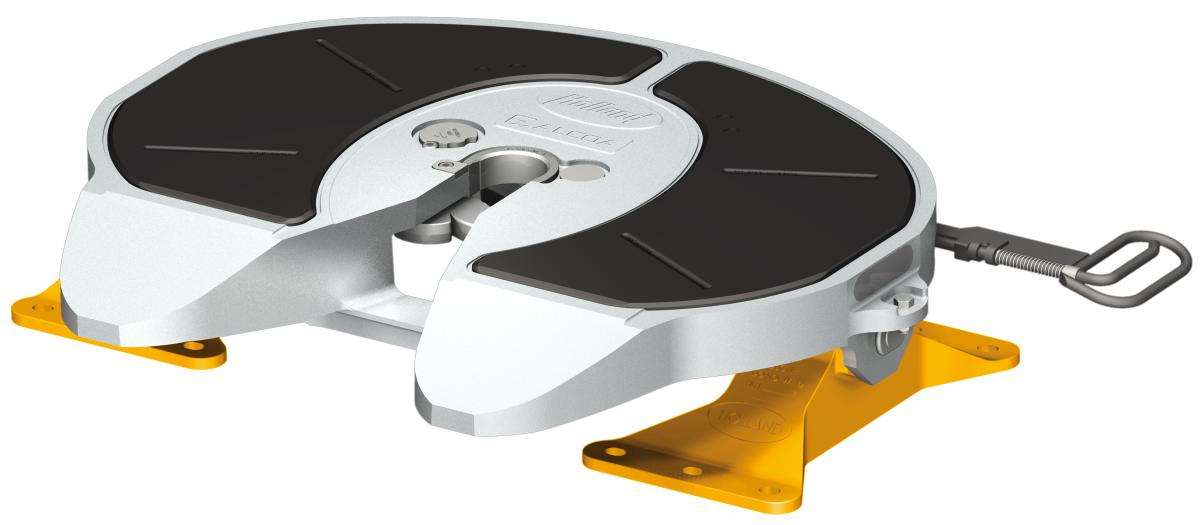

GC 6

Lightweight, cast 6t fifth wheel optimised for midsized

distribution vehicles and volume transport

• 2" fifth wheel with replaceable wear ring

• Single-handed operation

• Automatic safety lock

• Low-maintenance bearings

• Lubrication channels for effective grease flow

• Wear ring fully compatible with SK-S 36.20

• Connections for optional grease cartridge

• EU test no.: e11*94/20*6737

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

GC 6 2" 120 6 49,0 45 max.15° / max.15° 662 121 005

Dimensions

Subject to modifications in dimensions and design

11

Spare parts GC 6

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (19,20) 662 101 566

Repair kit for locking mechanism (6,16,18,19,20) 662 101 739

Repair kit for bearings (23,24,26) 662 101 740

1 Fifth wheel plate 1 662 121 020

2 Lubrication tube 1 659 144 160

3 Grease plug 1 662 129 380

4 Grease nipple 1 662 126 224

5 Pin 2 662 119 141

6 Coupler jaw assembly 1 662 121 026

Spare parts GC 6

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (19,20) 662 101 566

Repair kit for locking mechanism (6,16,18,19,20) 662 101 739

Repair kit for bearings (23,24,26) 662 101 740

1 Fifth wheel plate 1 662 121 020

2 Lubrication tube 1 659 144 160

3 Grease plug 1 662 129 380

4 Grease nipple 1 662 126 224

5 Pin 2 662 119 141

6 Coupler jaw assembly 1 662 121 026

12

Item Component (price per piece) Pcs. Disp. Order no.

7 Hex. bolt 1 659 112 655

8 Washer 1 662 126 175

9 Locking hook assembly 1 662 119 139

10 Operating handle, complete 1 662 121 027

11 Nut 1 659 100 036

12 Lock mechanism 1 662 121 031

13 Hex. bolt 4 659 112 359

14 Tension spring 1 662 121 029

15 Tension spring 1 662 126 410

16 Hex. bolt 2 659 112 355

17 Mounting 1 662 119 142

18 Nut 2 662 126 152

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

21 Cap 1 659 144 142

22 Mounting bracket 2 662 121 021

23 Bearing insert 2 662 121 022

24 Rubber damper 2 662 121 023

25 Tensioning bar 2 662 121 024

26 Cap screw 4 659 112 377

27 Type plate 1 659 120 420

Repair kit for wear ring (662 101 566)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (19,20) 662 101 566

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

Repair kit for locking mechanism (662 101 739)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (6,16,18,19,20) 662 101 739

6 Coupler jaw assembly 1 662 121 026

16 Hex. bolt 2 659 112 355

18 Nut 2 662 126 152

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

Item Component (price per piece) Pcs. Disp. Order no.

7 Hex. bolt 1 659 112 655

8 Washer 1 662 126 175

9 Locking hook assembly 1 662 119 139

10 Operating handle, complete 1 662 121 027

11 Nut 1 659 100 036

12 Lock mechanism 1 662 121 031

13 Hex. bolt 4 659 112 359

14 Tension spring 1 662 121 029

15 Tension spring 1 662 126 410

16 Hex. bolt 2 659 112 355

17 Mounting 1 662 119 142

18 Nut 2 662 126 152

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

21 Cap 1 659 144 142

22 Mounting bracket 2 662 121 021

23 Bearing insert 2 662 121 022

24 Rubber damper 2 662 121 023

25 Tensioning bar 2 662 121 024

26 Cap screw 4 659 112 377

27 Type plate 1 659 120 420

Repair kit for wear ring (662 101 566)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (19,20) 662 101 566

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

Repair kit for locking mechanism (662 101 739)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (6,16,18,19,20) 662 101 739

6 Coupler jaw assembly 1 662 121 026

16 Hex. bolt 2 659 112 355

18 Nut 2 662 126 152

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

Item Component (price per piece) Pcs. Disp. Order no.

7 Hex. bolt 1 659 112 655

8 Washer 1 662 126 175

9 Locking hook assembly 1 662 119 139

10 Operating handle, complete 1 662 121 027

11 Nut 1 659 100 036

12 Lock mechanism 1 662 121 031

13 Hex. bolt 4 659 112 359

14 Tension spring 1 662 121 029

15 Tension spring 1 662 126 410

16 Hex. bolt 2 659 112 355

17 Mounting 1 662 119 142

18 Nut 2 662 126 152

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

21 Cap 1 659 144 142

22 Mounting bracket 2 662 121 021

23 Bearing insert 2 662 121 022

24 Rubber damper 2 662 121 023

25 Tensioning bar 2 662 121 024

26 Cap screw 4 659 112 377

27 Type plate 1 659 120 420

Repair kit for wear ring (662 101 566)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (19,20) 662 101 566

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

Repair kit for locking mechanism (662 101 739)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (6,16,18,19,20) 662 101 739

6 Coupler jaw assembly 1 662 121 026

16 Hex. bolt 2 659 112 355

18 Nut 2 662 126 152

19 Wear ring 1 662 129 377

20 Cap screw 2 659 112 372

13

Repair kit for bearings (662 101 740)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for bearings (23,24,26) 662 101 740

23 Bearing insert 2 662 121 022

24 Rubber damper 2 662 121 023

26 Cap screw 4 659 112 377

Repair kit for bearings (662 101 740)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for bearings (23,24,26) 662 101 740

23 Bearing insert 2 662 121 022

24 Rubber damper 2 662 121 023

26 Cap screw 4 659 112 377

14

Notice

15

SK-S 36.20 PLUS H

HEIGHT-ADjUSTAbLE

UP TO 15T IMPOSED

LOAD

HEIGHT-ADJUSTABLE

FIFTH WHEEL

16

SK-S 36.20 PLUS H (Versatile in use)

SK-S 36.20 PLUS H (Versatile in use)

Height adjustable fifth wheel

The SAF-HOLLAND dual height fifth wheel is designed for 2-axle semi-trailer

tractors for large volume transport. The dual height feature allows the use of

the same semi-trailer tractor with various trailers.

• Extremely robust and user friendly

• Weight optimised model

• Permanent, low maintenance bearings

• Connections for central lubrication

• Simple and safe wear adjustment

• Automatic safety lock

• Approved for forced steering

• EU test no.: e 11-00-1381

Ordering instructions

• The standard versions listed are not pre-drilled

• Mounting hole patterns available for DAF, Iveco, MAN, Mercedes-Benz, Renault, Scania, Volvo

• Indicate type and coupling point of semi-trailer tractor when placing an order

• The coupling point is measured from the centre of the rear axle to the centre of the kingpin in lowered position

• The manufacturer`s mounting kits are to be used

• Conversion kit for central lubrication system optionally available

SK-S 36.20 PLUS H

Type Model Ohveiegrhaltl Imlpooasded D-value Weight Dimensions Order no.

mm t kN kg mm

SK-S 36.20 PLUS H Standard 167-267 15 110 329 1205x980 662 132 311

SK-S 36.20 PLUS H Standard 167-317 15 110 334 1205x980 662 132 312

SK-S 36.20 PLUS H Standard 167-367 15 110 336 1205x980 662 132 313

SK-S 36.20 PLUS HS RECOSS

Type Model Ohveiegrhaltl Imlpooasded D-value Weight Dimensions Order no.

mm t kN kg mm

SK-S 36.20 PLUS HS Standard 167-267 15 110 329 1205x980 662 132 331

SK-S 36.20 PLUS HS Standard 167-317 15 110 334 1205x980 662 132 332

SK-S 36.20 PLUS HS Standard 167-367 15 110 336 1205x980 662 132 333

SK-S 36.20 PLUS HW (low maintenance fifth wheel plate)

Type Model Ohveiegrhaltl Imlpooasded D-value Weight Dimensions Order no.

mm t kN kg mm

SK-S 36.20 PLUS HW Standard 167-267 15 110 329 1205x980 662 132 351

SK-S 36.20 PLUS HW Standard 167-317 15 110 334 1205x980 662 132 352

SK-S 36.20 PLUS HW Standard 167-367 15 110 336 1205x980 662 132 353

SK-S 36.20 PLUS HWS (low maintenance fifth wheel plate, RECOSS®)

Type Model Ohveiegrhaltl Imlpooasded D-value Weight Dimensions Order no.

mm t kN kg mm

SK-S 36.20 PLUS HWS Standard 167-267 15 110 329 1205x980 662 132 371

SK-S 36.20 PLUS HWS Standard 167-317 15 110 334 1205x980 662 132 372

SK-S 36.20 PLUS HWS Standard 167-367 15 110 336 1205x980 662 132 373

Lift sub-assembly, complete

Type Model Ohveiegrhaltl Weight Dimensions Order no.

mm kg mm

Lift sub-assembly, complete Standard 167-267 252 1205x980 662 132 051

Lift sub-assembly, complete Standard 167-317 257 1205x980 662 132 052

Lift sub-assembly, complete Standard 167-367 259 1205x980 662 132 053

17

Technical data

• Movement around lateral axis at basic height ±8°

• Operation: adjustable (to max. 8 bar) in unhitched state by means of the tractor`s compressed air system with pneumatic support (air bellows)

• Coupling point changes when adjusting height: 11 mm [267] / 24 mm [317] / 34 mm [367]

Dimensions

• The fixing holes (max. Ш21 mm) may be drilled in these 10 areas

• Increase number of bolts accordingly when using bolts with a smaller diameter

• Mounting hole pattern according to DIN 74081

• Depending on the wheelbase, an additional mounting angle set is required for installing on a Scania chassis

• Subject to modifications in dimensions and design

Mounting kits SK-S 30.20 PLUS H

Type Mounting Model Order no.

Mounting kit 725 Mercedes-Benz (Actros), Australia, New Zealand 14 x M20 662 101 725

Mounting kit 726 Iveco (Stralis), MAN (TGA), DAF (XF95, XF105) 14 x M16 662 101 726

Mounting kit 728 Volvo (FH12) 20 x M14 662 101 728

Mounting kit 729 Scania (CA, LA, DA, Serie R) 14 x M18 662 101 729

Mounting kit 731 Renault (Magnum, Premium) 14 x M16 662 101 731

Scania mounting angle kit 734 Kit  needed for Scania wheelbase of 3700 mm 662 101 734

Scania mounting angle kit 735 Kit  needed for Scania wheelbase of 3550 mm 662 101 735

18

Spare parts SK-S 36.20 PLUS H

When placing your order, always indicate the article no.

as well as the serial no. of your dual height fifth wheel.

Spare parts for fifth wheel plate see spare part list

of the respective fifth wheel type

Item Component (price per piece) Pcs. Disp. Order no.

Repair kits for rocker bearing (11,23,39*) 662 132 195

Repair kits for support bearing (19,20,24,25,30,35*,38*) 662 132 196

1 Base plate 1 662 132 105

2 Locking pin (RHS) 1 662 132 161

3 Actuating rod 1 662 132 162

4 Left support 100 mm complete (25,29,31) 1 662 132 181

5 Right support 100 mm complete (25,29,31) 1 662 132 182

6 Rocker arm 1 662 132 165

7 Locking lever 1 662 132 170

8 Toothed wheel 1 662 132 119

10 Split pin 1 662 132 205

11 Shaft 2 662 132 110

Spare parts SK-S 36.20 PLUS H

When placing your order, always indicate the article no.

as well as the serial no. of your dual height fifth wheel.

Spare parts for fifth wheel plate see spare part list

of the respective fifth wheel type

Item Component (price per piece) Pcs. Disp. Order no.

Repair kits for rocker bearing (11,23,39*) 662 132 195

Repair kits for support bearing (19,20,24,25,30,35*,38*) 662 132 196

1 Base plate 1 662 132 105

2 Locking pin (RHS) 1 662 132 161

3 Actuating rod 1 662 132 162

4 Left support 100 mm complete (25,29,31) 1 662 132 181

5 Right support 100 mm complete (25,29,31) 1 662 132 182

6 Rocker arm 1 662 132 165

7 Locking lever 1 662 132 170

8 Toothed wheel 1 662 132 119

10 Split pin 1 662 132 205

11 Shaft 2 662 132 110

Spare parts SK-S 36.20 PLUS H

When placing your order, always indicate the article no.

as well as the serial no. of your dual height fifth wheel.

Spare parts for fifth wheel plate see spare part list

of the respective fifth wheel type

Item Component (price per piece) Pcs. Disp. Order no.

Repair kits for rocker bearing (11,23,39*) 662 132 195

Repair kits for support bearing (19,20,24,25,30,35*,38*) 662 132 196

1 Base plate 1 662 132 105

2 Locking pin (RHS) 1 662 132 161

3 Actuating rod 1 662 132 162

4 Left support 100 mm complete (25,29,31) 1 662 132 181

5 Right support 100 mm complete (25,29,31) 1 662 132 182

6 Rocker arm 1 662 132 165

7 Locking lever 1 662 132 170

8 Toothed wheel 1 662 132 119

10 Split pin 1 662 132 205

11 Shaft 2 662 132 110

19

Item Component (price per piece) Pcs. Disp. Order no.

12 Right locking plate 1 662 132 111

13 Left locking plate 1 662 132 155

14 Guide pipe 1 662 132 120

15 Washer 8 662 132 206

16 Hex. bolt 4 662 101 359

17 Spring washer 2 662 132 202

18 Hex. bolt 2 662 132 203

19 Hex. bolt 2 662 132 211

20 Locking nut 2 662 132 215

23 Bush 4 662 132 132

24 Bush 2 662 132 130

25 Bush 4 662 132 146

26 Air bellows 1 662 132 200

27 Air inlet adaptor 1 662 132 135

28 90° elbow connector 1 662 126 493

29 Cap 4 659 144 142

30 Washer 6 662 132 204

31 Grease nipple 4 662 132 214

32 Spring washer 4 662 132 208

33 Hex. bolt 4 662 132 207

35* Spacer set 1 662 132 198

38* Spacer set 1 662 132 197

39* Spacer set 1 662 132 199

42 Spring lock 2 662 132 172

43 Spring lock 1 662 132 171

44 Left support 150 mm complete (25,29,31) 1 662 132 183

45 Right support 150 mm complete (25,29,31) 1 662 132 184

46 Left support 200 mm complete (25,29,31) 1 662 132 185

47 Right support 200 mm complete (25,29,31) 1 662 132 186

48 Mounting 1 662 132 139

49 Operating valve (3/2-way valve) 1 662 132 156

50 Pneumatic tube 1 662 132 169

52 Locking pin (LHS) 1 662 132 173

53 Flanged bush 5 662 132 174

54 Cap bolt 5 659 112 381

55** Nut 3 659 115 313

56** Nut 2 659 115 312

57 Nut (not shown) 1 659 115 314

60 Fifth wheel top plate assembly (available on request) 1

61 Shaft 2 662 132 292

62 Hex. bolts 4 659 112 627

63 Spring pin 2 662 132 293

35* Set contains spacers D 116x80x0.5, D 116x80x1, D 116x80x2

38* Set contains spacers D 80x45,5x0.5, D 80x45,5x1, D 80x45,5x2

39* Set contains spacing washers D 65x40.5x0.5, D 65x40.5x1, D 65x40.5x2

**) Component welded with unit

Conversion kit for central lubrication (662 132 041)

Component (price per piece) Pcs. Disp. Order no.

Conversion kit to connect on central lubrication system 1 662 132 041

20

Notice

21

UP TO 20T

IMPOSED LOAD

STANDARD-

FIFTH WHEEL

22

SK-S 36.20 PLUS (Standard)

The lightweight, cast 20t fifth wheel

• Weight optimised fifth wheel

• Dead weight reduced by 8 kg

• Reliable and robust

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

• Optimised lubrication channels for effective grease

flow

• Connections for central lubrication

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS 2" 128* 20 152 116 8° / 8° 662 129 046

SK-S 36.20 PLUS 2" 150 20 152 116 8° / 13° 662 129 047

SK-S 36.20 PLUS 2" 185 20 152 119 17° / 26° 662 129 048

SK-S 36.20 PLUS 2" 225 20 152 121 23° / 30° 662 129 031

SK-S 36.20 PLUS 2" 250 20 152 131 29° / 42° 662 129 049

SK-S 36.20 PLUS Export Version 2" 150 20 152 8° / 13° 662 129 084

SK-S 36.20 PLUS Export Version 2" 185 20 152 17° / 26° 662 129 085

• * Tilt angle in accordance with ISO 1726 for height 128 mm is only guaranteed with our mounting plate MP 486

• Approved for forced steering

• EU test no.: e 1-00-0218

• Type approval, Germany: M 5134

Dimensions

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

23

Spare parts SK-S 36.20 PLUS

The spare parts for the SK-S 36.20 PLUS are fully compatible with the SK-S 36.20.

Repair kits also apply to SK-S 36.20 PLUS D.

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings 13000 - ... 662 101 493

Repair kit for locking mechanism and bearings 0 - 12999 662 101 477

Repair kit for locking mechanism (9, 11, 12, 18, 21) 13000 - ... 662 101 492

Repair kit for locking mechanism (9, 11, 12, 18, 21) 0 - 12999 662 101 475

Repair kit for bearings (13, 15, 23) 662 101 473

Repair kit for wear ring (12, 18) 13000 - ... 662 101 566

Repair kit for wear ring (12, 18) 0 - 12999 662 101 565

Fifth wheel plate (PLUS) complete without mounting brackets 1 662 129 003

1 Fifth wheel plate (PLUS) 1 662 129 471

2* Operating handle, complete (2a, 2b) 13000 - ... 1 662 129 166

2a Adjustment plate 13000 - ... 1 662 129 158

2b Cap screw 13000 - ... 2 659 112 371

3 Mounting bracket 128 mm 2 662 129 383

3 Mounting bracket 150 mm 2 662 129 484

Spare parts SK-S 36.20 PLUS

The spare parts for the SK-S 36.20 PLUS are fully compatible with the SK-S 36.20.

Repair kits also apply to SK-S 36.20 PLUS D.

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings 13000 - ... 662 101 493

Repair kit for locking mechanism and bearings 0 - 12999 662 101 477

Repair kit for locking mechanism (9, 11, 12, 18, 21) 13000 - ... 662 101 492

Repair kit for locking mechanism (9, 11, 12, 18, 21) 0 - 12999 662 101 475

Repair kit for bearings (13, 15, 23) 662 101 473

Repair kit for wear ring (12, 18) 13000 - ... 662 101 566

Repair kit for wear ring (12, 18) 0 - 12999 662 101 565

Fifth wheel plate (PLUS) complete without mounting brackets 1 662 129 003

1 Fifth wheel plate (PLUS) 1 662 129 471

2* Operating handle, complete (2a, 2b) 13000 - ... 1 662 129 166

2a Adjustment plate 13000 - ... 1 662 129 158

2b Cap screw 13000 - ... 2 659 112 371

3 Mounting bracket 128 mm 2 662 129 383

3 Mounting bracket 150 mm 2 662 129 484

Spare parts SK-S 36.20 PLUS

The spare parts for the SK-S 36.20 PLUS are fully compatible with the SK-S 36.20.

Repair kits also apply to SK-S 36.20 PLUS D.

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings 13000 - ... 662 101 493

Repair kit for locking mechanism and bearings 0 - 12999 662 101 477

Repair kit for locking mechanism (9, 11, 12, 18, 21) 13000 - ... 662 101 492

Repair kit for locking mechanism (9, 11, 12, 18, 21) 0 - 12999 662 101 475

Repair kit for bearings (13, 15, 23) 662 101 473

Repair kit for wear ring (12, 18) 13000 - ... 662 101 566

Repair kit for wear ring (12, 18) 0 - 12999 662 101 565

Fifth wheel plate (PLUS) complete without mounting brackets 1 662 129 003

1 Fifth wheel plate (PLUS) 1 662 129 471

2* Operating handle, complete (2a, 2b) 13000 - ... 1 662 129 166

2a Adjustment plate 13000 - ... 1 662 129 158

2b Cap screw 13000 - ... 2 659 112 371

3 Mounting bracket 128 mm 2 662 129 383

3 Mounting bracket 150 mm 2 662 129 484

24

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

3 Mounting bracket 185 mm 2 662 129 485

3 Mounting bracket 225 mm 2 662 129 389

3 Mounting bracket 250 mm 2 662 129 386

9 Coupler jaw (662 129 372) complete with bush 1 662 129 134

10* Locking hook 13000 - ... 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Hex. bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 13000 - ... 1 662 129 377

12 Wear ring 0 - 12999 1 662 129 373

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

17 Carabiner hook with chain 1 662 100 574

18 Cap screw 13000 - ... 2 659 112 372

18 Cap screw 0 - 12999 2 662 126 155

19a Hex. bolt 13000 - ... 7 659 112 359

19a Hex. bolt 0 - 12999 5 662 126 172

20 Washer 1 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Hex. bolt 4 662 129 606

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

26a Rivet 1 662 126 179

27 Plastic plug 13000 - ... 4 662 126 223

27 Plastic plug 0 - 12999 2 662 126 223

28 Hammer rivet 1 662 126 151

29 Lubrication tube 13000 - ... 1 659 144 106

30 Grease plug 13000 - ... 1 662 129 380

34 Automatic latch 1 662 129 153

35 Safety flange for carabiner hook 12000 - ... 1 662 129 147

35 Safety flange for carabiner hook 0 - 11999 1 662 129 376

36 Guide plate 1 662 129 144

37 Lock nut 1 659 100 029

38 Hex. bolt 0 - 12999 2 662 111 202

Lock nut (not shown) 0 - 12999 1 662 126 176

Grease nipple (not shown) 0 - 12999 1 662 126 224

Eyebolt (not shown) 0 - 12999 1 662 126 465

Plastic plug (not shown) 0 - 12999 4 662 129 393

Central lubrication * (not shown) 659 144 143

* Serial no. 0-11999: spare part on request.

* Serial no. 12000-12999: both components have to be exchanged when changing the operating handle or the locking hook.

25

Repair kit for locking mechanism

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism (9, 11, 12, 18, 21) 13000 - ... 662 101 492

Repair kit for locking mechanism (9, 11, 12, 18, 21) 0 - 12999 662 101 475

Repair kit for wear ring (12, 18) 13000 - ... 662 101 566

Repair kit for wear ring (12, 18) 0 - 12999 662 101 565

9 Coupler jaw 1 662 129 134

11 Pin 1 662 129 375

12 Wear ring 13000 - ... 1 662 129 377

12 Wear ring 0 - 12999 1 662 129 373

18 Cap screw 13000 - ... 2 659 112 372

18 Cap screw 0 - 12999 2 662 126 155

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

Repair kit for bearing

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for bearings (13, 15, 23) 662 101 473

13 Rubber damper 2 662 114 110

15 Bearing insert 2 662 130 101

23 Hex. bolt 4 662 129 606

Repair kit for locking mechanism

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism (9, 11, 12, 18, 21) 13000 - ... 662 101 492

Repair kit for locking mechanism (9, 11, 12, 18, 21) 0 - 12999 662 101 475

Repair kit for wear ring (12, 18) 13000 - ... 662 101 566

Repair kit for wear ring (12, 18) 0 - 12999 662 101 565

9 Coupler jaw 1 662 129 134

11 Pin 1 662 129 375

12 Wear ring 13000 - ... 1 662 129 377

12 Wear ring 0 - 12999 1 662 129 373

18 Cap screw 13000 - ... 2 659 112 372

18 Cap screw 0 - 12999 2 662 126 155

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

Repair kit for bearing

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for bearings (13, 15, 23) 662 101 473

13 Rubber damper 2 662 114 110

15 Bearing insert 2 662 130 101

23 Hex. bolt 4 662 129 606

26

SK-S 36.20 PLUS W (low maintenance)

The lightweight, low maintenance cast 20t fifth wheel

• Weight optimised fifth wheel

• Dead weight reduced by 8 kg

• Designed for highway application

• Less grease consumption

• Easily changeable plastic wear plates

• Central lubrication system connection not required

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

For automatic lubrication of the locking mechanism we recommend the use of our grease dispenser with adaptor.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS W 2" 128* 20 152 116 8° / 8° 662 131 011

SK-S 36.20 PLUS W 2" 150 20 152 116 8° / 13° 662 131 012

SK-S 36.20 PLUS W 2" 185 20 152 119 17° / 26° 662 131 013

SK-S 36.20 PLUS W 2" 225 20 152 121 23° / 30° 662 131 042

SK-S 36.20 PLUS W 2" 250 20 152 131 29° / 42° 662 131 014

• * Tilt angle in accordance with ISO 1726 for height 128 mm is only guaranteed with our mounting plate MP 486

• Approved for forced steering

• EU test no.: e 1-00-0218

Dimensions

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

27

Spare parts SK-S 36.20 PLUS W

The spare parts for the SK-S 36.20 PLUS W are fully compatible with the SK-S 36.20 W

Repair kits also apply to SK-S 36.20 PLUS DW

28

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings (9,11,12,13,15,18,21,23) 662 101 516

Repair kit for locking mechanism (9,11,12,18,21) 662 101 517

Repair kit for bearings (13,15,23) 662 101 518

Repair kit for wear plate (38,39) 662 101 469

Repair kit for wear ring (12,18) 662 101 534

Fifth wheel plate (W) without mounting brackets (mounting kit required) 1 662 131 002

Mounting kit required for fifth wheel plate (W) without brackets (13,14,15,23,38,39) 662 101 738

1 Fifth wheel plate (W) 1 662 131 471

2 Operating handle, complete ( incl. 2a, 2b) 1 662 129 166

2a Adjustment plate 1 662 129 158

2b Cap screw 2 659 112 371

3 Mounting bracket 128 mm 2 662 129 383

3 Mounting bracket 150 mm 2 662 129 484

3 Mounting bracket 185 mm 2 662 129 485

3 Mounting bracket 225 mm 2 662 129 389

3 Mounting bracket 250 mm 2 662 129 386

9 Coupler jaw 1 662 131 107

10 Locking hook 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Hex. bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 1 662 131 114

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

17 Carabiner hook with chain 1 662 100 574

18 Cap screw 2 659 112 372

19a Hex. bolt 7 659 112 359

20 Washer 1 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Cap bolt 4 659 112 365

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

28 Hammer rivet 1 662 126 151

29 Lubrication tube (495) 35178 - ... 1 659 144 146

29 Lubrication tube (410) 0 - 35177 1 659 144 106

32 Grease nipple 35178 - ... 1 662 126 224

34 Automatic latch 1 662 129 153

35 Safety flange 1 662 129 147

36 Guide plate 1 662 129 144

38 Wear plate 2 662 131 103

39 Collar screw, special 12 662 130 114

29

Repair kit for wear plates (662 101 469)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear plate (38,39) 662 101 469

38 Wear plate 2 662 131 103

39 Collar screw, special 12 662 130 114

Repair kit for locking mechanism

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (9,11,12,18,21) 662 101 517

Repair kit for wear ring (12,18) 662 101 534

9 Coupler jaw 1 662 131 107

11 Pin 1 662 129 375

12 Wear ring 1 662 131 114

18 Cap screw 2 659 112 372

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

Repair kit for bearings (662 101 518)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for bearings (13,15,23) 662 101 518

13 Rubber damper 2 662 114 110

15 Bearing insert 2 662 130 101

23 Cap bolt 4 659 112 365

Repair kit for wear plates (662 101 469)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear plate (38,39) 662 101 469

38 Wear plate 2 662 131 103

39 Collar screw, special 12 662 130 114

Repair kit for locking mechanism

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (9,11,12,18,21) 662 101 517

Repair kit for wear ring (12,18) 662 101 534

9 Coupler jaw 1 662 131 107

11 Pin 1 662 129 375

12 Wear ring 1 662 131 114

18 Cap screw 2 659 112 372

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

Repair kit for bearings (662 101 518)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for bearings (13,15,23) 662 101 518

13 Rubber damper 2 662 114 110

15 Bearing insert 2 662 130 101

23 Cap bolt 4 659 112 365

30

SK-S 36.20 PLUS D (direct mounting)

The compact, lightweight fifth wheel

The new lightweight fifth wheel

for 2-axle 18t semi-trailer tractors for highway application.

• Easy to mount directly on the vehicle chassis

• Weight optimised fifth wheel: higher payload

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

• Optimised lubrication channels for effective grease flow

• EU test no.: e 1-00-0218

Technical data

Mercedes-Benz model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS D 148* 20 152 126* 9.5° / 13° 662 129 200 01

SK-S 36.20 PLUS D 190 20 152 135 19° / 25° 662 129 201 01

SK-S 36.20 PLUS D 225 20 152 143 24° / 30° 662 129 202 01

• *Additional vendor specific mounting plate (12 mm / 39 kg)

MAN model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS D 148* 20 152 126* 9.5° / 13° 662 129 200 02

SK-S 36.20 PLUS D 190 20 152 135 19° / 25° 662 129 201 02

SK-S 36.20 PLUS D 225 20 152 143 24° / 30° 662 129 202 02

• *Additional vendor specific mounting plate (8 mm / 18 kg)

IVECO model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS D 148* 20 152 126* 9.5° / 13° 662 129 200 03

SK-S 36.20 PLUS D 190 20 152 135 19° / 25° 662 129 201 03

SK-S 36.20 PLUS D 225 20 152 143 24° / 30° 662 129 202 03

• *Additional vendor specific mounting plate (8 mm / 40 kg)

DAF model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS D 190 20 152 135 19° / 25° 662 129 201 04

SK-S 36.20 PLUS D 225 20 152 143 24° / 30° 662 129 202 04

31

Spare parts SK-S 36.20 PLUS D

The spare parts for the SK-S 36.20 PLUS D are fully compatible with the SK-S 36.20 D

Repair kits also apply to SK-S 36.20 PLUS

32

Item Component (price per piece) Model Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings (9,11,12,13,15,18,21,23) 662 101 493

Repair kit for locking mechanism (9,11,12,18,21) 662 101 492

Repair kit for bearings (13,15,23) 662 101 473

Repair kit for wear ring (12,18) 662 101 566

Fifth wheel plate (PLUS) complete without mounting brackets 662 129 003

1 Fifth wheel plate (PLUS) 1 662 129 471

2 Operating handle, complete 662 129 166

2a Adjustment plate 1 662 129 158

2b Cap screw 2 659 112 371

4 Mounting bracket 148 mm Mercedes-Benz 2 662 131 120

4 Mounting bracket 148 mm MAN 2 662 131 121

4 Mounting bracket 148 mm IVECO 2 662 131 122

4 Mounting bracket 148 mm DAF 2 662 131 123

6 Mounting bracket 190 mm Mercedes-Benz 2 662 131 125

6 Mounting bracket 190 mm MAN 2 662 131 126

6 Mounting bracket 190 mm IVECO 2 662 131 127

6 Mounting bracket 190 mm DAF 2 662 131 128

7 Mounting bracket 225 mm Mercedes-Benz 2 662 131 130

7 Mounting bracket 225 mm MAN 2 662 131 131

7 Mounting bracket 225 mm IVECO 2 662 131 132

7 Mounting bracket 225 mm DAF 2 662 131 133

9 Coupler jaw (662 129 372) complete with bush 1 662 129 134

10 Locking hook assembly 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Hex. bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 1 662 129 377

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

17 Carabiner hook with chain 1 662 100 574

18 Cap screw 2 659 112 372

19a Hex. bolt 7 659 112 359

20 Washer 1 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Hex. bolt 4 662 129 606

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

26a Rivet 1 662 126 179

27 Plastic plug 4 662 126 223

28 Hammer rivet 1 662 126 151

29 Lubrication tube assembly 1 659 144 106

30 Grease plug 1 662 129 380

34 Automatic latch 1 662 129 153

35 Safety flange for carabiner hook 1 662 129 155

36 Guide plate 1 662 129 144

37 Lock nut 1 659 100 029

40 Tie rod complete 1 662 131 142

41 Strut  Ш51 mm 1 662 131 143

41 Strut Ш60.3 mm, for DAF model, height 225 mm 1 662 131 139

33

SK-S 36.20 PLUS DW (direct mounting)

The compact, low-maintenance, lightweight fifth wheel

The new, low-maintenance, lightweight fifth wheel for 2-axle 18t semi-trailer

tractors for highway application.

• Easy to mount directly on the vehicle chassis

• Weight optimised fifth wheel: higher payload

• Less grease consumption

• Easily changeable plastic wear plates

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

• EU test no.: e 1-00-0218

For automatic lubrication of the locking mechanism we recommend the use of our grease dispenser with adaptor.

Technical data

Mercedes-Benz model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS DW 148* 20 152 126* 9.5° / 13° 662 131 016 01

SK-S 36.20 PLUS DW 190 20 152 135 19° / 25° 662 131 017 01

SK-S 36.20 PLUS DW 225 20 152 143 24° / 30° 662 131 018 01

• *Additional vendor specific mounting plate (12 mm / 39 kg)

MAN model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS DW 148* 20 152 126* 9.5° / 13° 662 131 016 02

SK-S 36.20 PLUS DW 190 20 152 135 19° / 25° 662 131 017 02

SK-S 36.20 PLUS DW 225 20 152 143 24° / 30° 662 131 018 02

• *Additional vendor specific mounting plate (8 mm / 18 kg)

IVECO model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS DW 148* 20 152 126* 9.5° / 13° 662 131 016 03

SK-S 36.20 PLUS DW 190 20 152 135 19° / 25° 662 131 017 03

SK-S 36.20 PLUS DW 225 20 152 143 24° / 30° 662 131 018 03

• *Additional vendor specific mounting plate (8 mm / 40 kg)

DAF model

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS DW 190 20 152 135 19° / 25° 662 131 017 04

SK-S 36.20 PLUS DW 225 20 152 143 24° / 30° 662 131 018 04

34

Spare parts SK-S 36.20 PLUS DW

The spare parts for the SK-S 36.20 PLUS DW are fully compatible with the SK-S 36.20 DW

Repair kits also apply to SK-S 36.20 PLUS DW.

Item Component (price per piece) Model Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings (9,11,12,13,15,18,21,23) 662 101 516

Repair kit for locking mechanism (9, 11, 12, 18, 21) 662 101 517

Repair kit for bearings (13, 15, 23) 662 101 518

Repair kit for wear plate (38,39) 662 101 469

Repair kit for wear ring (12, 18) 662 101 534

Spare parts SK-S 36.20 PLUS DW

The spare parts for the SK-S 36.20 PLUS DW are fully compatible with the SK-S 36.20 DW

Repair kits also apply to SK-S 36.20 PLUS DW.

Item Component (price per piece) Model Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings (9,11,12,13,15,18,21,23) 662 101 516

Repair kit for locking mechanism (9, 11, 12, 18, 21) 662 101 517

Repair kit for bearings (13, 15, 23) 662 101 518

Repair kit for wear plate (38,39) 662 101 469

Repair kit for wear ring (12, 18) 662 101 534

35

Item Component (price per piece) Model Pcs. Disp. Order no.

Fifth wheel plate (W) without mounting brackets (mounting kit required) 662 131 002

Mounting kit required for fifth wheel plate (W) without brackets (13,14,15,23,38,39) 662 101 738

1 Fifth wheel plate (PLUS W) 662 131 471

2 Operating handle, complete 1 662 129 166

2a Adjustment plate 1 662 129 158

2b Cap screw 2 659 112 371

4 Mounting bracket 148 mm Mercedes-Benz 2 662 131 120

4 Mounting bracket 148 mm MAN 2 662 131 121

4 Mounting bracket 148 mm IVECO 2 662 131 122

4 Mounting bracket 148 mm DAF 2 662 131 123

6 Mounting bracket 190 mm Mercedes-Benz 2 662 131 125

6 Mounting bracket 190 mm MAN 2 662 131 126

6 Mounting bracket 190 mm IVECO 2 662 131 127

6 Mounting bracket 190 mm DAF 2 662 131 128

7 Mounting bracket 225 mm Mercedes-Benz 2 662 131 130

7 Mounting bracket 225 mm MAN 2 662 131 131

7 Mounting bracket 225 mm IVECO 2 662 131 132

7 Mounting bracket 225 mm DAF 2 662 131 133

9 Coupler jaw 1 662 131 107

10 Locking hook 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Hex. bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 1 662 131 114

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

17 Carabiner hook with chain 1 662 100 574

18 Cap screw 2 659 112 372

19a Hex. bolt 7 659 112 359

20 Washer 1 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Cap bolt 4 659 112 365

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

28 Hammer rivet 1 662 126 151

29 Lubrication tube assembly 1 659 144 146

32 Grease nipple 1 662 126 224

34 Automatic latch 1 662 129 153

35 Safety flange 1 662 129 147

36 Guide plate 1 662 129 144

38 Wear plate 2 662 131 103

39 Collar screw, special 12 662 130 114

40 Tie rod complete 1 662 131 142

41 Strut  Ш51 mm 1 662 131 143

41 Strut Ш60.3 mm, for DAF model, height 225 mm 1 662 131 139

36

SK-S 36.20 PLUS V (mounting angles)

The lightweight, cast 20t fifth wheel with mounting

angles for Volvo vehicles

• Weight optimised fifth wheel

• No additional mounting plate required

• 10-15 kg higher payload

• Reliable and robust

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

• Optimised lubrication channels for effective grease

flow

Technical data

• Angle of inclination in accordance with ISO 1726

• Approved for forced steering

• EU test no.: e 1-00-0218

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS V 140 20 152,3 144 6.5° / 7.2° 437,5 662 129 206

SK-S 36.20 PLUS V 140 20 152,3 144 6.5° / 7.2° 462,5 662 129 210

SK-S 36.20 PLUS V 160 20 152,3 146 13° / 15° 437,5 662 129 207

SK-S 36.20 PLUS V 160 20 152,3 146 13° / 15° 462,5 662 129 211

SK-S 36.20 PLUS V 200 20 152,3 150 20° / 23° 437,5 662 129 208

SK-S 36.20 PLUS V 200 20 152,3 150 20° / 23° 462,5 662 129 212

SK-S 36.20 PLUS V 230 20 152,3 153 24° / 30° 437,5 662 129 209

SK-S 36.20 PLUS V 230 20 152,3 153 24° / 30° 462,5 662 129 214

Model with central lubrication kit

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS V 140 20 152,3 145 6.5° / 7.2° 462,5 662 129 215

SK-S 36.20 PLUS V 140 20 152,3 145 6.5° / 7.2° 437,5 662 129 219

SK-S 36.20 PLUS V 160 20 152,3 147 13° / 15° 462,5 662 129 216

SK-S 36.20 PLUS V 160 20 152,3 147 13° / 15° 437,5 662 129 220

SK-S 36.20 PLUS V 200 20 152,3 151 20° / 23° 462,5 662 129 217

SK-S 36.20 PLUS V 200 20 152,3 151 20° / 23° 437,5 662 129 221

SK-S 36.20 PLUS V 230 20 152,3 154 24° / 30° 462,5 662 129 218

SK-S 36.20 PLUS V 230 20 152,3 154 24° / 30° 437,5 662 129 222

Dimensions

SK-S 36.20 PLUS V (mounting angles)

The lightweight, cast 20t fifth wheel with mounting

angles for Volvo vehicles

• Weight optimised fifth wheel

• No additional mounting plate required

• 10-15 kg higher payload

• Reliable and robust

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

• Optimised lubrication channels for effective grease

flow

Technical data

• Angle of inclination in accordance with ISO 1726

• Approved for forced steering

• EU test no.: e 1-00-0218

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS V 140 20 152,3 144 6.5° / 7.2° 437,5 662 129 206

SK-S 36.20 PLUS V 140 20 152,3 144 6.5° / 7.2° 462,5 662 129 210

SK-S 36.20 PLUS V 160 20 152,3 146 13° / 15° 437,5 662 129 207

SK-S 36.20 PLUS V 160 20 152,3 146 13° / 15° 462,5 662 129 211

SK-S 36.20 PLUS V 200 20 152,3 150 20° / 23° 437,5 662 129 208

SK-S 36.20 PLUS V 200 20 152,3 150 20° / 23° 462,5 662 129 212

SK-S 36.20 PLUS V 230 20 152,3 153 24° / 30° 437,5 662 129 209

SK-S 36.20 PLUS V 230 20 152,3 153 24° / 30° 462,5 662 129 214

Model with central lubrication kit

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS V 140 20 152,3 145 6.5° / 7.2° 462,5 662 129 215

SK-S 36.20 PLUS V 140 20 152,3 145 6.5° / 7.2° 437,5 662 129 219

SK-S 36.20 PLUS V 160 20 152,3 147 13° / 15° 462,5 662 129 216

SK-S 36.20 PLUS V 160 20 152,3 147 13° / 15° 437,5 662 129 220

SK-S 36.20 PLUS V 200 20 152,3 151 20° / 23° 462,5 662 129 217

SK-S 36.20 PLUS V 200 20 152,3 151 20° / 23° 437,5 662 129 221

SK-S 36.20 PLUS V 230 20 152,3 154 24° / 30° 462,5 662 129 218

SK-S 36.20 PLUS V 230 20 152,3 154 24° / 30° 437,5 662 129 222

Dimensions

SK-S 36.20 PLUS V (mounting angles)

The lightweight, cast 20t fifth wheel with mounting

angles for Volvo vehicles

• Weight optimised fifth wheel

• No additional mounting plate required

• 10-15 kg higher payload

• Reliable and robust

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

• Optimised lubrication channels for effective grease

flow

Technical data

• Angle of inclination in accordance with ISO 1726

• Approved for forced steering

• EU test no.: e 1-00-0218

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS V 140 20 152,3 144 6.5° / 7.2° 437,5 662 129 206

SK-S 36.20 PLUS V 140 20 152,3 144 6.5° / 7.2° 462,5 662 129 210

SK-S 36.20 PLUS V 160 20 152,3 146 13° / 15° 437,5 662 129 207

SK-S 36.20 PLUS V 160 20 152,3 146 13° / 15° 462,5 662 129 211

SK-S 36.20 PLUS V 200 20 152,3 150 20° / 23° 437,5 662 129 208

SK-S 36.20 PLUS V 200 20 152,3 150 20° / 23° 462,5 662 129 212

SK-S 36.20 PLUS V 230 20 152,3 153 24° / 30° 437,5 662 129 209

SK-S 36.20 PLUS V 230 20 152,3 153 24° / 30° 462,5 662 129 214

Model with central lubrication kit

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS V 140 20 152,3 145 6.5° / 7.2° 462,5 662 129 215

SK-S 36.20 PLUS V 140 20 152,3 145 6.5° / 7.2° 437,5 662 129 219

SK-S 36.20 PLUS V 160 20 152,3 147 13° / 15° 462,5 662 129 216

SK-S 36.20 PLUS V 160 20 152,3 147 13° / 15° 437,5 662 129 220

SK-S 36.20 PLUS V 200 20 152,3 151 20° / 23° 462,5 662 129 217

SK-S 36.20 PLUS V 200 20 152,3 151 20° / 23° 437,5 662 129 221

SK-S 36.20 PLUS V 230 20 152,3 154 24° / 30° 462,5 662 129 218

SK-S 36.20 PLUS V 230 20 152,3 154 24° / 30° 437,5 662 129 222

Dimensions

37

Spare parts SK-S 36.20 PLUS V

The spare parts for the SK-S 36.20 PLUS V are fully compatible with the SK-S 36.20 V

Repair kits also apply to SK-S 36.20 PLUS

* Central lubrication set can be ordered for models (662 129 206) to (662 129 214).

38

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism and bearings (9,11,12,13,15,18,21,23) 662 101 493

Repair kit for locking mechanism (9,11,12,18,21) 662 101 492

Repair kit for locking bearings (13,15,23) 662 101 473

Fifth wheel plate (PLUS) complete without mounting brackets 662 129 003

1 Fifth wheel plate (PLUS) 1 662 129 471

2 Operating handle, complete 1 662 129 166

2a Adjustment plate 1 662 129 158

2b Cap screw 2 659 112 371

3a Bracket 140mm mounted on rail a (V= 437,5 mm) * 1 662 129 362

3b Bracket 140mm mounted on rail a (V= 462,5 mm) * 1 662 129 363

4a Bracket 160mm mounted on rail a (V= 437,5 mm) * 1 662 129 364

4b Bracket 160mm mounted on rail b (V= 462,5 mm) * 1 662 129 365

6a Bracket 200mm mounted on rail a (V= 437,5 mm) * 1 662 129 366

6b Bracket 200mm mounted on rail b (V= 462,5 mm) * 1 662 129 367

7a Bracket 230mm mounted on rail a (V= 437,5 mm) * 1 662 129 368

7b Bracket 230mm mounted on rail b (V= 462,5 mm) * 1 662 129 369

9 Coupler jaw (662 129 372) complete with bush 1 662 129 134

10 Locking hook 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Hex. bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 1 662 129 377

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

17 Carabiner hook with chain 662 100 574

18 Cap screw 2 659 112 372

19a Hex. bolt 7 659 112 359

20 Washer 1 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Hex. bolt 4 662 129 606

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

26a Rivet 1 662 126 179

27 Plastic plug 4 662 126 223

28 Hammer rivet 662 126 151

29 Lubrication tube 1 659 144 106

30 Grease plug 1 662 129 380

34 Automatic latch 1 662 129 153

35 Safety flange for carabiner hook 0 - 11999 662 129 376

35 Safety flange for carabiner hook 12000 - ... 662 129 147

36 Guide plate 1 662 129 144

37 Lock nut 1 659 100 029

Central lubrication * (not shown) 1 659 144 143

* Mounting angles are required in pairs, consisting of a+b in the requested height.

The indicated measure V is measured during mounting of the brackets on the right hand side in driving direction.

A reversal of the mounting angles increases or decreases the coupling point by 25 mm.

39

SK-S 36.20 PLUS VW (mounting angles)

The low maintenance cast 20t fifth wheel with

mounting angles for Volvo vehicles

• Weight optimised fifth wheel

• No additional mounting plate required

• 10-15 kg higher payload

• Designed for highway application

• Less grease consumption

• Easily changeable plastic wear plates

• Central lubrication system connection not required

• Single handed operation

• Automatic safety lock

• Simple and safe wear adjustment

• Permanent, maintenance-free bearings

For automatic lubrication of the locking mechanism we recommend the use of our grease dispenser with adaptor.

Technical data

• Angle of inclination in accordance with ISO 1726

• Approved for forced steering

• EU test no.: e 1-00-0218

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS VW 140 20 152,3 144 6.5° / 7.2° 462,5 662 131 050

SK-S 36.20 PLUS VW 140 20 152,3 144 6.5° / 7.2° 437,5 662 131 060

SK-S 36.20 PLUS VW 160 20 152,3 146 13° / 15° 462,5 662 131 051

SK-S 36.20 PLUS VW 160 20 152,3 146 13° / 15° 437,5 662 131 061

SK-S 36.20 PLUS VW 200 20 152,3 150 20° / 23° 462,5 662 131 052

SK-S 36.20 PLUS VW 200 20 152,3 150 20° / 23° 437,5 662 131 062

SK-S 36.20 PLUS VW 230 20 152,3 153 24° / 30° 462,5 662 131 053

SK-S 36.20 PLUS VW 230 20 152,3 153 24° / 30° 437,5 662 131 063

Dimensions

Subject to modifications in dimensions and design

40

Spare parts SK-S 36.20 PLUS VW

The spare parts for the SK-S 36.20 PLUS VW are fully compatible with the SK-S 36.20 VW.

Repair kits also apply to SK-S 36.20 PLUS DW.

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism (9,11,12,18,21) 662 101 517

Repair kit for locking bearings (13,15,23) 662 101 518

Repair kit for wear plates (38,39) 662 101 469

Fifth wheel plate (W) without mounting brackets (Mounting kit required) 662 131 002

Mounting kit for wear plate (13,14,15,23,38,39) 662 101 738

1 Fifth wheel plate (PLUS W) 662 131 471

Spare parts SK-S 36.20 PLUS VW

The spare parts for the SK-S 36.20 PLUS VW are fully compatible with the SK-S 36.20 VW.

Repair kits also apply to SK-S 36.20 PLUS DW.

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

Repair kit for locking mechanism (9,11,12,18,21) 662 101 517

Repair kit for locking bearings (13,15,23) 662 101 518

Repair kit for wear plates (38,39) 662 101 469

Fifth wheel plate (W) without mounting brackets (Mounting kit required) 662 131 002

Mounting kit for wear plate (13,14,15,23,38,39) 662 101 738

1 Fifth wheel plate (PLUS W) 662 131 471

41

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

2 Operating handle, complete 1 662 129 166

2a Adjustment plate 1 662 129 158

2b Cap screw 2 659 112 371

3a Bracket 140mm mounted on rail a (V= 437,5 mm) * 1 662 129 362

3b Bracket 140mm mounted on rail b (V= 462,5 mm) * 1 662 129 363

4a Bracket 160mm mounted on rail a (V= 437,5 mm) * 1 662 129 364

4b Bracket 160mm mounted on rail b (V= 462,5 mm) * 1 662 129 365

6a Bracket 200mm mounted on rail a (V= 437,5 mm) * 1 662 129 366

6b Bracket 200mm mounted on rail b (V= 462,5 mm) * 1 662 129 367

7a Bracket 230mm mounted on rail a (V= 437,5 mm) * 1 662 129 368

7b Bracket 230mm mounted on rail b (V= 462,5 mm) * 1 662 129 369

9 Coupler jaw 1 662 131 107

10 Locking hook 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Hex. bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 1 662 131 114

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

18 Cap screw 2 659 112 372

19a Hex. bolt 7 659 112 359

20 Washer 1 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Cap screw 4 659 112 365

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

29 Lubrication tube (495) 35178 - ... 1 659 144 146

29 Lubrication tube (410) 0 - 35177 1 659 144 106

32 Grease nipple 1 662 126 224

34 Automatic latch 1 662 129 153

36 Guide plate 1 662 129 144

38 Wear plate 2 662 131 103

39 Collar screw, special 12 662 130 114

Lubrication tube assembly (29,31) (not shown) 659 144 146

* Mounting angles are required in pairs, consisting of a+b in the requested height.

The indicated measure V is measured during mounting of the brackets on the right hand side in driving direction.

A reversal of the mounting angles increases or decreases the coupling point by 25 mm.

42

FW 3510

The 20t vertical load with 65t gross combination

weight.

• High strength cast steel construction - permitted

operating temperature to -40° C.

• Top surface machined to improve wear, steering and

fit with trailer plate. Patented grease groove pattern

for improved wear and durability and prepared for

central lubrication system.

• Forged alloy steel locks with infinite adjustment.

• Operating handle fitted with automatic secondary

locking device, eliminating the need for a clip and

chain also available with optional long handle.

• Suitable for all types of rear axle steering.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

FW3510-ISO bracket mounting 0 150 20 150 135 0 FW3510-150

FW3510-ISO bracket mounting 0 180 20 150 139 0 FW3510-180

FW3510-ISO bracket mounting 0 200 20 150 142 0 FW3510-200

FW3510-Weightsaver 0 140 20 150 158 0 FW3510-140

FW3510-Weightsaver 0 160 20 150 160 0 FW3510-160

FW3510-Weightsaver 190 20 150 163 FW3510-190

FW3510-Weightsaver 230 20 150 166 FW3510-230

• add suffix -XL for version with long handle

• Type Approval. e1*94/20*0812

Dimensions

The 20t vertical load 43

Spare parts FW3510

Item Component (price per piece) Pcs. Order no.

Lock jaw set (Pos. 1-25, 29-35) RK-3510-R

Lock repair kit RS-91089

Cushion kit RS-91086

Cushion kit with pocket inserts RS-91086-1

Cushion kit (38A) RS-91131-1

Handle kit complete RS-91093

Handle kit (long handle) RS-91098

Front lock grease tube kit RS-91110

1 Lock jaw set 1 XA-07296-KTL

2 Lock pin 2 XA-07292-82

3 Retaining ring 2 38027

4 Grease fitting 2 38028

5 Extension spring 2 XB-07628-KTL

6 Hex head cap srew 1 31039

7 Washer 2 XB-76004

8 Roller 1 XA-1029

9 Camplate 1 XA-0750-R-KTL

10 Locknut 1 32001

11 Hex head cap screw 1 XB-CX-58-F-134

12 Washer 2 XB-07431-KTL

13 Roller 1 XA-1507

14 Locknut 1 XB-HNH-34-F

15 Washer 1 33034

16 Rubber washer 1 XB-1127

17 Lock adjustment tag 1 XB-02312

18 Compression spring 1 XB-1505-KTL

Spare parts FW3510

Item Component (price per piece) Pcs. Order no.

Lock jaw set (Pos. 1-25, 29-35) RK-3510-R

Lock repair kit RS-91089

Cushion kit RS-91086

Cushion kit with pocket inserts RS-91086-1

Cushion kit (38A) RS-91131-1

Handle kit complete RS-91093

Handle kit (long handle) RS-91098

Front lock grease tube kit RS-91110

1 Lock jaw set 1 XA-07296-KTL

2 Lock pin 2 XA-07292-82

3 Retaining ring 2 38027

4 Grease fitting 2 38028

5 Extension spring 2 XB-07628-KTL

6 Hex head cap srew 1 31039

7 Washer 2 XB-76004

8 Roller 1 XA-1029

9 Camplate 1 XA-0750-R-KTL

10 Locknut 1 32001

11 Hex head cap screw 1 XB-CX-58-F-134

12 Washer 2 XB-07431-KTL

13 Roller 1 XA-1507

14 Locknut 1 XB-HNH-34-F

15 Washer 1 33034

16 Rubber washer 1 XB-1127

17 Lock adjustment tag 1 XB-02312

18 Compression spring 1 XB-1505-KTL

44

Item Component (price per piece) Pcs. Order no.

19 Yoke shaft 2 XA-1706

20 Yoke 2 XA-07295-KTL

21 Standard handle 2 XA-09437

Long handle (not shown) 1 XA-09752

22 Socket head screw 1 31040

23 Bushing 1 XA-03082

24 Washer 1 33031

25 Locknut 2 32001

26 Bolt 2 31041

27 Locknut 2 32001

28 Holder 1 XA-E-60234

29 Roll pin 1 XB-21-S-500-2750

30 Torsion spring 1 XB-2149-KTL

31 Secondary lock 4 XA-3542-R-KTL

32 Grease fitting (to. Feb. 2009) 1 38009

33 Tag 2 XB-07610

34 Extension spring 1 XB-05679-2

35 Spring mount 1 XA-09645-KTL

36 Rubber cusion 2 XB-0011-3

36A Rubber cusion (see 38A) 1 XB-10606

37 Bracket pin 1 XE-06356-KTL

38 ISO bracket-150mm 2 XD-04942-KTL

ISO bracket-180mm 2 XD-04943-KTL

ISO bracket-200mm 2 XD-04944-KTL

38A ISO bracket-180mm (later type - June 2007 on) 2 XD-04943-S-KTL

39 Pocket insert ( Feb. 2002 on) 1 XB-10210

40 Rubber washer (ISO brkt only) 1 XB-60144

40A Rubber washer (see 38A) 2 XB-10605-RW

45

FW 3110

The 20t vertical load with 65t gross combination

weight.

• All lock system components are protected with a

low friction coating providing long wear life and

superior corrosion protection - No lubrication

required.

• Easily replaceable wear pads on the top face

eliminate the need for greasing of the top surface

and wear of the casting.

• Patented surface alloy on the kingpin contact

surfaces of the lock jaws provides lubrication-free

operation, high wear resistance and eliminates the

need to grease the locks.

• Operating handle fitting with automatic secondary

locking device, eliminating the need for a clip and

chain.

• Suitable for all types of rear axle steering.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

FW3110 - ISO bracket mounting 0 159 20 150 138 0 FW3110-150

FW3110 - ISO bracket mounting 0 189 20 150 142 0 FW3110-180

FW3110 - ISO bracket mounting 0 211 20 150 145 0 FW3110-200

FW3110 - Weightsaver 0 149 20 150 161 0 FW3110-140

FW3110 - Weightsaver 0 171 20 150 163 0 FW3110-160

FW3110 - Weightsaver 197 20 150 166 FW3110-190

FW3110 - Weightsaver 235 20 150 169 FW3110-230

• * add suffix -XL for version with long handle

• Type approval e1*94/20*0812

Dimensions

The 20t vertical load 46

Spare parts FW3110

Item Component (price per piece) Pcs. Order no.

Full overhaul kit (Pos. 1-24, 27-29, 32, 33) RS-91113

Lock repair kit RS-91114

Cushion kit with poc. inserts RS-91086-1

Cushion kit (see 36A) RS-91131-1

Handle kit complete RS-91093

Handle kit complet (with optional long handle) RS-91098

Replacement pad set RS-91115

1 Lock jaw set 1 XA-10853-SP-KTL

2 Lock pin 2 XA-07292-2

3 Retaining ring 2 XB-07398

4 Extension spring 2 XB-07628-KTL

5 Hex head cap screw 1 31039

6 Washer 2 XB-10294

7 Roller 1 XA-10265

8 Camplate 1 XA-10450

9 Locknut 1 32001

10 Hex head cap screw 1 XB-CX-58-F-134

11 Washer 2 XB-10259

12 Roller 1 XA-10343

13 Locknut 1 XB-HNH-34-F

14 Washer 1 33034

15 Rubber washer 1 XB-1127

16 Lock adjustment tag 1 XB-02312-1

Spare parts FW3110

Item Component (price per piece) Pcs. Order no.

Full overhaul kit (Pos. 1-24, 27-29, 32, 33) RS-91113

Lock repair kit RS-91114

Cushion kit with poc. inserts RS-91086-1

Cushion kit (see 36A) RS-91131-1

Handle kit complete RS-91093

Handle kit complet (with optional long handle) RS-91098

Replacement pad set RS-91115

1 Lock jaw set 1 XA-10853-SP-KTL

2 Lock pin 2 XA-07292-2

3 Retaining ring 2 XB-07398

4 Extension spring 2 XB-07628-KTL

5 Hex head cap screw 1 31039

6 Washer 2 XB-10294

7 Roller 1 XA-10265

8 Camplate 1 XA-10450

9 Locknut 1 32001

10 Hex head cap screw 1 XB-CX-58-F-134

11 Washer 2 XB-10259

12 Roller 1 XA-10343

13 Locknut 1 XB-HNH-34-F

14 Washer 1 33034

15 Rubber washer 1 XB-1127

16 Lock adjustment tag 1 XB-02312-1

47

Item Component (price per piece) Pcs. Order no.

17 Compression spring 1 XB-1505-KTL

18 Yoke shaft 2 XA-1706

19 Yoke 2 XA-10257

20 Handle 2 XA-09437

Long handle (not shown) 1 XA-09752

21 Socket head screw 1 31040

22 Bushing 1 XA-03082

23 Washer 1 33031

24 Locknut 2 32001

25 Bolt 2 31041

26 Locknut 2 32001

27 Roll pin 1 XB-21-S-500-2750

28 Torsion spring 1 XB-2149-KTL

29 Secondary lock 4 XA-10451

30 Pocket insert 2 XB-10210

31 Tag 2 XB-07610

32 Extension spring 1 XB-05679-2

33 Spring mount 1 XA-09645

34 Rubber cusion 2 XB-0011-3

35 Rubber cusion (see 36A) 1 XB-10606

36 Bracket pin 1 XE-06356-KTL

ISO bracket -150mm 2 XD-04942-KTL

ISO bracket -180mm 2 XD-04943-KTL

ISO bracket -200mm 2 XD-04944-KTL

36A ISO bracket -200mm (new type) 2 XD-04943-S-KTL

37 Rubber washer (with ISO bracket only) 1 XB-60144

37A Rubber washer (see 36A) 2 XB-10605-RW

48

GES 20 (Pressed-steel fifth wheel)

Light fifth wheel made of pressed steel

• Simple robust and maintenance friendly top load

construction

• Automatic safety lock

• Mountable on SAF-HOLLAND slider SK-V 20

• Simple and continuous wear adjustment

• Fully compatible to mounting brackets of SK-S 36.20

• Suitable for steering wedge applications

• EU test no.: e11*94/20/EG*6735

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

GES 20 2" 150 20 152 128 15° / 15° 662 133 047

GES 20 2" 185 20 152 132 15° / 15° 662 133 048

GES 20 2" 225 20 152 133 15° / 15° 662 133 031

GES 20 2" 250 20 152 143 15° / 15° 662 133 049

• The GES 20 are built in accordance with 94/20 EC guidelines G50 class and are to be used in conjunction with fifth wheel kingpins of class H50 and

mounting plates of class J or comparable approved devices.

• To be used with semi-trailers whose counterplate is sufficiently firm and flat in accordance with ISO 1726 and ISO 1726 part 2.

Dimensions

Mounting hole pattern according to DIN 74081 and ISO 3842

Subject to modifications in dimensions and design

49

Spare parts GES 20

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (9,9a,10a,10b,10c,10d,10e,16a,16b,19a, 20a) 662 133 492

Repair kit for wear ring (12,18) 662 133 566

1 Fifth wheel plate without mounting brackets 1 662 133 001

1 Fifth wheel plate 1 662 133 371

2 Operating handle, complete 1 662 133 177

2a Adjusting screw M16x425 1 662 133 600

3a Mounting bracket 150 mm 2 662 129 384

3b Mounting bracket 185 mm 2 662 129 385

3c Mounting bracket 225 mm 2 662 129 389

3d Mounting bracket 250 mm 2 662 129 386

9 Coupler jaw 1 662 133 134

9a Washer 17 1 662 133 610

10 Locking hook assembly 1 662 133 170

10a Locking latch 1 662 133 381

10b Split pin 1 662 133 605

10c Washer 20.5 1 662 133 611

10d Pin II 1 662 133 376

10e Bush II 1 662 133 374

11 Pin I 1 662 133 375

Spare parts GES 20

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (9,9a,10a,10b,10c,10d,10e,16a,16b,19a, 20a) 662 133 492

Repair kit for wear ring (12,18) 662 133 566

1 Fifth wheel plate without mounting brackets 1 662 133 001

1 Fifth wheel plate 1 662 133 371

2 Operating handle, complete 1 662 133 177

2a Adjusting screw M16x425 1 662 133 600

3a Mounting bracket 150 mm 2 662 129 384

3b Mounting bracket 185 mm 2 662 129 385

3c Mounting bracket 225 mm 2 662 129 389

3d Mounting bracket 250 mm 2 662 129 386

9 Coupler jaw 1 662 133 134

9a Washer 17 1 662 133 610

10 Locking hook assembly 1 662 133 170

10a Locking latch 1 662 133 381

10b Split pin 1 662 133 605

10c Washer 20.5 1 662 133 611

10d Pin II 1 662 133 376

10e Bush II 1 662 133 374

11 Pin I 1 662 133 375

50

Item Component (price per piece) Pcs. Disp. Order no.

12 Wear ring 1 662 133 377

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 133 411

16a Tension spring 1 662 133 317

16b Tension spring 1 662 133 318

18 Cap bolt M14 3 662 133 166

19 Lock mechanism 1 662 133 378

19a Pin III 1 662 133 601

20 Castellated nut M16 1 662 133 602

20a Split pin 1 662 133 604

23 Cap bolt M20x70 4 659 112 365

26 Nut M16 1 662 133 616

Repair kit for wear ring (662 133 566)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (12,18) 662 133 566

12 Wear ring 1 662 133 377

18 Cap bolt M14 3 662 133 166

Repair kit for locking mechanism (662 133 492)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (9,9a,10a,10b,10c,10d,10e,16a,16b,19a, 20a) 662 133 492

9 Coupler jaw 1 662 133 134

9a Washer 17 1 662 133 610

10a Locking latch 1 662 133 381

10b Split pin 1 662 133 605

10c Washer 20.5 1 662 133 611

10d Pin II 1 662 133 376

10e Bush II 1 662 133 374

10f Adapter bush 1 662 133 373

11 Pin I 1 662 133 375

16 Tension spring 1 662 133 411

16a Tension spring 1 662 133 317

16b Tension spring 1 662 133 318

19a Pin III 1 662 133 601

20 Castellated nut M16 1 662 133 602

20a Split pin 1 662 133 604

Item Component (price per piece) Pcs. Disp. Order no.

12 Wear ring 1 662 133 377

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 133 411

16a Tension spring 1 662 133 317

16b Tension spring 1 662 133 318

18 Cap bolt M14 3 662 133 166

19 Lock mechanism 1 662 133 378

19a Pin III 1 662 133 601

20 Castellated nut M16 1 662 133 602

20a Split pin 1 662 133 604

23 Cap bolt M20x70 4 659 112 365

26 Nut M16 1 662 133 616

Repair kit for wear ring (662 133 566)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (12,18) 662 133 566

12 Wear ring 1 662 133 377

18 Cap bolt M14 3 662 133 166

Repair kit for locking mechanism (662 133 492)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (9,9a,10a,10b,10c,10d,10e,16a,16b,19a, 20a) 662 133 492

9 Coupler jaw 1 662 133 134

9a Washer 17 1 662 133 610

10a Locking latch 1 662 133 381

10b Split pin 1 662 133 605

10c Washer 20.5 1 662 133 611

10d Pin II 1 662 133 376

10e Bush II 1 662 133 374

10f Adapter bush 1 662 133 373

11 Pin I 1 662 133 375

16 Tension spring 1 662 133 411

16a Tension spring 1 662 133 317

16b Tension spring 1 662 133 318

19a Pin III 1 662 133 601

20 Castellated nut M16 1 662 133 602

20a Split pin 1 662 133 604

Item Component (price per piece) Pcs. Disp. Order no.

12 Wear ring 1 662 133 377

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 133 411

16a Tension spring 1 662 133 317

16b Tension spring 1 662 133 318

18 Cap bolt M14 3 662 133 166

19 Lock mechanism 1 662 133 378

19a Pin III 1 662 133 601

20 Castellated nut M16 1 662 133 602

20a Split pin 1 662 133 604

23 Cap bolt M20x70 4 659 112 365

26 Nut M16 1 662 133 616

Repair kit for wear ring (662 133 566)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for wear ring (12,18) 662 133 566

12 Wear ring 1 662 133 377

18 Cap bolt M14 3 662 133 166

Repair kit for locking mechanism (662 133 492)

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism (9,9a,10a,10b,10c,10d,10e,16a,16b,19a, 20a) 662 133 492

9 Coupler jaw 1 662 133 134

9a Washer 17 1 662 133 610

10a Locking latch 1 662 133 381

10b Split pin 1 662 133 605

10c Washer 20.5 1 662 133 611

10d Pin II 1 662 133 376

10e Bush II 1 662 133 374

10f Adapter bush 1 662 133 373

11 Pin I 1 662 133 375

16 Tension spring 1 662 133 411

16a Tension spring 1 662 133 317

16b Tension spring 1 662 133 318

19a Pin III 1 662 133 601

20 Castellated nut M16 1 662 133 602

20a Split pin 1 662 133 604

51

FWAL-E MOUNTING OPTIONS

Part Number Height Weight

FWAL-E-IS-165  167 mm   94 kg

FWAL-E-IS-195 197 mm 100 kg

FWAL-E-IS-220 219 mm 103 kg

ISO BRACKET MOUNTING

International Standard ISO/DIN 6 hole mounting bracket offering

full interchangeability with 52

Spare parts FWAL-E

Item Component (price per piece) Order no.

Full overhaul kit cpl. (Pos. 5-7, 1-16, 18, 22-25, 28-31) RK-AL-A-E

Repair kit for wear ring (Pos. 29-30) RK-AL-10680

Repair kit for locking mechanism (Pos. 5, 6, 13, 14, 18, 29-31) RK-AL-10486

Lube plate set (Pos. 2, 3, 4) RS-91115

Replacement operating handle kit (Pos. 7, 15, 16) RK-AL-10681

Bracket pins/rubber bush set RK-AL-0011-3

Bracket pins/rubber bush set (ISO 180mm) RK-AL-10605

53

SAFETY SYSTEM

FOR FIFTH WHEEL

SK-S 36.20 PLUS

RECOSS®

54

RECOSS® - The proven 3-sensor safety system

for fifth wheel SK-S 36.20 PLUS

Audio and visual display function in driver`s cab.

• RECOSS® is available for all models of the SK-S 36.20 PLUS fifth wheel.

• In addition, the RECOSS® installation kit is required to connect the RECOSS® system.

Model SK-S 36.20 PLUS S (standard)

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS S 128* 20 152 116 8° / 8° 662 129 080

SK-S 36.20 PLUS S 150 20 152 116 8° / 13° 662 129 081

SK-S 36.20 PLUS S 185 20 152 119 17° / 26° 662 129 082

SK-S 36.20 PLUS S 225 20 152 121 23° / 30° 662 129 089

SK-S 36.20 PLUS S 250 20 152 131 29° / 42° 662 129 083

• * Tilt angle in accordance with ISO 1726 for height 128 mm is only guaranteed with our mounting plate MP 486

• EU test no.: e 1-00-0218

Model SK-S 36.20 PLUS WS (low maintenance)

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.2 0 PLUS WS 128* 20 152 116 8° / 8° 662 131 080

SK-S 36.2 0 PLUS WS 150 20 152 116 8° / 13° 662 131 081

SK-S 36.2 0 PLUS WS 185 20 152 119 17° / 26° 662 131 082

SK-S 36.2 0 PLUS WS 225 20 152 121 23° / 30° 662 131 083

SK-S 36.2 0 PLUS WS 250 20 152 131 29° / 42° 662 131 084

• * Tilt angle in accordance with ISO 1726 for height 128 mm is only guaranteed with our mounting plate MP 486

• For automatic lubrication of the locking mechanism we recommend the use of our grease dispenser with adaptor.

• EU test no.: e 1-00-0218

Model SK-S 36.20 PLUS DS (direct mounting)

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS DS 148* 20 152 126* 9.5° / 13° 662 129 260

SK-S 36.20 PLUS DS 190 20 152 135 19° / 25° 662 129 261

SK-S 36.20 PLUS DS 225 20 152 143 24° / 30° 662 129 262

• * Additional vendor specific mounting plate

• Please indicate vehicle type when placing orders (Mercedes-Benz, MAN, IVECO, DAF)

• EU test no.: e 1-00-0218

Model SK-S 36.20 PLUS DWS (direct mounting, low maintenance)

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

mm t kN kg degree (w1/w2)

SK-S 36.20 PLUS DWS 148* 20 152 126* 9.5° / 13° 662 131 075

SK-S 36.20 PLUS DWS 190 20 152 135 19° / 25° 662 131 076

SK-S 36.20 PLUS DWS 225 20 152 143 24° / 30° 662 131 077

• * Additional vendor specific mounting plate

• Please indicate vehicle type when placing orders (Mercedes-Benz, MAN, IVECO, DAF)

• For automatic lubrication of the locking mechanism we recommend the use of our grease dispenser with adaptor.

• EU test no.: e 1-00-0218

55

Model SK-S 36.20 PLUS VS (Volvo mounting angles)

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS VS 160 20 152,3 146 13° / 15° 462,5 662 129 263

SK-S 36.20 PLUS VS 160 20 152,3 146 13° / 15° 437,5 662 129 264

SK-S 36.20 PLUS VS 200 20 152,3 150 20° / 23° 462,5 662 129 265

SK-S 36.20 PLUS VS 200 20 152,3 150 20° / 23° 437,5 662 129 266

SK-S 36.20 PLUS VS 230 20 152,3 153 24° / 30° 462,5 662 129 267

SK-S 36.20 PLUS VS 230 20 152,3 153 24° / 30° 437,5 662 129 268

SK-S 36.20 PLUS VS (ZS*) 160 20 152,3 146 13° / 15° 462,5 662 129 269

SK-S 36.20 PLUS VS (ZS*) 160 20 152,3 146 13° / 15° 437,5 662 129 270

SK-S 36.20 PLUS VS (ZS*) 200 20 152,3 150 20° / 23° 462,5 662 129 271

SK-S 36.20 PLUS VS (ZS*) 200 20 152,3 150 20° / 23° 437,5 662 129 272

SK-S 36.20 PLUS VS (ZS*) 230 20 152,3 153 24° / 30° 462,5 662 129 273

SK-S 36.20 PLUS VS (ZS*) 230 20 152,3 153 24° / 30° 437,5 662 129 274

• Angle of inclination in accordance with ISO 1726

• EU test no.: e 1-00-0218

• ZS* = Model with central lubrication kit

Model SK-S 36.20 PLUS VWS (Volvo mounting angles, low maintenance)

Type Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Length V Order no.

mm t kN kg degree (w1/w2) mm

SK-S 36.20 PLUS VWS 160 20 152,3 146 13° / 15° 462,5 662 131 093

SK-S 36.20 PLUS VWS 160 20 152,3 146 13° / 15° 437,5 662 131 094

SK-S 36.20 PLUS VWS 200 20 152,3 150 20° / 23° 462,5 662 131 096

SK-S 36.20 PLUS VWS 200 20 152,3 150 20° / 23° 437,5 662 131 097

SK-S 36.20 PLUS VWS 230 20 152,3 153 24° / 30° 462,5 662 131 098

SK-S 36.20 PLUS VWS 230 20 152,3 153 24° / 30° 437,5 662 131 099

• Angle of inclination in accordance with ISO 1726

• For automatic lubrication of the locking mechanism we recommend the use of our grease dispenser with adaptor.

• EU test no.: e 1-00-0218

Model -S 36.20 PLUS HS (Dual height fifth wheel)

• For RECOSS® order no. please see chapter SK-S 36.20 PLUS H

Dimensions

56

RECOSS® installation kit for SK-S 36.20 PLUS S models

The installation kit contains all components for connecting a SK-S 36.20 PLUS S fifth wheel with control unit (Pos. 15). Not included are

indicator lights which must be separately ordered from the respective vehicle manufacturer.

Item Type Note Disp. Order no.

9-15 RECOSS® installation kit for all SK-S 36.20 PLUS S models 3 sensors, ADR suitable 662 129 415

RECOSS® conversion kit for SK-S 36.20 PLUS

All fifth wheel models of the SK-S 36.20 PLUS are prepared for retrofitting the new RECOSS® 3-sensor safety system. The conversion kit

includes the installation kit as well as all the necessary components except the indicator lights which must be separately ordered from

the respective manufacturer.

Item Type Note Disp. Order no.

1-15 RECOSS® conversion kit for SK-S 36.20 PLUS (complete) contains installation kit 662 129 417

RECOSS® repair kits and spare parts

Item Type Pcs. Disp. Order no.

Repair kit for locking mechanism SK-S 36.20 PLUS S 662 101 716

Repair kit for locking mechanism SK-S 36.20 PLUS WS 662 101 718

Repair kit for locking mechanism and bearings SK-S 36.20 PLUS  S 662 101 717

Repair kit for locking mechanism and bearings SK-S 36.20 PLUS  WS 662 101 719

3-8 Repair kit for sensors complete(3-sensor model) 662 129 427

1 Coupler jaw SK-S 36.20 PLUS RECOSS® 1 662 131 115

2 Circlip 1 659 100 027

5 Cable clip 6 662 129 168

9 Wiring loom assembly (9a,9b,9c,9d) 662 129 401

10 Control unit (3-sensor, ADR/GGVS suitable) 1 662 129 400

11 Mounting adaptor for control unit 1 662 129 404

13 Cable tie 3 659 100 045

14 Labels for indicator lights 1 662 129 190

15 Display unit (incl. mounting socket and screws) 1 662 129 445

57

Spare parts SK-S 36.20 PLUS A RECOHITCH®

Item Component (price per piece) Pcs. Disp. Order no.

1 Fifth wheel plate 1 662 129 472

2 Operating handle, complete (2a, 2b) 1 662 129 465

2a Adjustment plate 1 662 129 158

2b Cap screw 2 659 112 371

3 Mounting bracket 128 mm 2 662 129 383

3 Mounting bracket 150 mm 2 662 129 484

3 Mounting bracket 185 mm 2 662 129 485

3 Mounting bracket 225 mm 2 662 129 389

3 Mounting bracket 250 mm 2 662 129 386

9 Coupler jaw 1 662 129 161

10 Locking hook 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Cap bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 1 662 129 377

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

18 Cap screw 2 659 112 372

19a Hex. bolt 7 659 112 359

20 Washer 2 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Hex. bolt 4 662 129 606

24 Type plate 1 659 120 420

26 Rivet 1 662 126 179

Spare parts SK-S 36.20 PLUS A RECOHITCH®

Item Component (price per piece) Pcs. Disp. Order no.

1 Fifth wheel plate 1 662 129 472

2 Operating handle, complete (2a, 2b) 1 662 129 465

2a Adjustment plate 1 662 129 158

2b Cap screw 2 659 112 371

3 Mounting bracket 128 mm 2 662 129 383

3 Mounting bracket 150 mm 2 662 129 484

3 Mounting bracket 185 mm 2 662 129 485

3 Mounting bracket 225 mm 2 662 129 389

3 Mounting bracket 250 mm 2 662 129 386

9 Coupler jaw 1 662 129 161

10 Locking hook 1 662 129 156

10a Stopper 1 662 129 381

10b Locking plate 1 662 129 387

10c Bush 1 662 129 374

10d Cap bolt 1 662 129 600

11 Pin 1 662 129 375

12 Wear ring 1 662 129 377

13 Rubber damper 2 662 114 110

14 Tensioning bar 2 662 129 388

15 Bearing insert 2 662 130 101

16 Tension spring 1 662 126 411

16a Tension spring 1 662 129 317

18 Cap screw 2 659 112 372

19a Hex. bolt 7 659 112 359

20 Washer 2 662 126 175

21 Circlip 1 659 100 027

21a Supporting washer 1 659 100 026

23 Hex. bolt 4 662 129 606

24 Type plate 1 659 120 420

26 Rivet 1 662 126 179

58

Item Component (price per piece) Pcs. Disp. Order no.

27 Plastic plug (Ш8 mm) 5 662 126 223

28 Plastic plug (Ш6 mm) 6 662 126 255

29 Lubrication tube assembly 1 659 144 106

30 Grease plug 1 662 129 380

31 Grease nipple 1 662 126 224

32 Cap 1 659 144 142

33 Mounting base 4 662 129 168

34 Automatic latch 1 662 129 461

35 Cap bolt 2 659 112 376

36 Guide plate 1 662 129 144

37 Lock nut 1 659 100 029

39 Unlocking cylinder 1 662 129 451

40 Cylinder fastener 1 662 129 452

41 Shaft circlip 1 659 100 099

42 Reed sensor 1 662 129 463

43 Worm drive clamp 1 659 144 161

44 Connecting line 1 662 129 466

45 Releasing module 1 662 129 450

46 Cap screw 3 659 112 351

47 Holder for counter plate sensor 1 662 129 488

48 Lock washer 1 662 129 490



49 Cap bolt 2 659 112 352

59

Notice

60

Notice

61

UP TO 36T

IMPOSED LOAD

HEAVY DUTY

FIFTH WHEEL

62

SK-HD 38.36

Fifth wheels for extra heavy transportation

• Permanent, maintenance-free bearings

• Conversion from 3Ѕ" to 2" and vice versa possible

• Simple adjustment of locking mechanism

• Suitable for steering wedge applications

• Special pneumatically operated version for harbour

application

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

SK-HD 38.36 3Ѕ" 150 36 260 185 12° / 12° 662 111 065

SK-HD 38.36 3Ѕ" 190 36 260 185 15° / 12° 662 111 066

SK-HD 38.36.2 2" 150 23 162 185 12° / 12° 662 111 085

SK-HD 38.36.2 2" 190 23 162 185 15° / 12° 662 111 074

• Approved for forced steering

• EU-test no.: e 1-00-0386 (3Ѕ")

• EU-test no.: e 1-00-0387 (2")

Dimensions

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

63

Spare parts SK-HD 38.36 from serial number 40001301

Please note: Also applies for serial numbers 40001055-1144, 40001195-1216

64

Item Component (price per piece) Pcs. Disp. Order no.

2" Repair kit for locking mechanism and bearings (9,11,12,13,15,18,23) 662 101 706

2" Repair kit for locking mechanism (9,11,12,18) 662 101 708

2" Repair kit for bearings (13,15,23) 662 101 457

2" Repair kit for wear ring (12,18) 662 101 710

3Ѕ" Repair kit for locking mechanism and bearings (9,11,12,13,15,18,23) 662 101 707

3Ѕ" Repair kit for locking mechanism (9,11,12,18) 662 101 709

3Ѕ" Repair kit for bearings (13,15,23) 662 101 457

3Ѕ"Repair kit for wear ring (12,18) 662 101 711

Conversion kit from 3Ѕ" to 2" (9,12,18,24,26) 662 101 704

Conversion kit from 2" to 3Ѕ" (9,12,18,24,26) 662 101 705

1 Fifth wheel plate 1 662 111 254

2 Operating handle 1 662 111 276

4 Mounting bracket 150 mm 2 662 111 293

6 Mounting bracket 190 mm 2 662 111 256

9 Coupler jaw, 2" 1 662 111 249

9 Coupler jaw, 3Ѕ" 1 662 111 247

10 Locking hook 1 662 111 239

10a Cam 1 662 111 317

10b Lubrication tube assembly 2 659 144 106

11 Pin 2 662 111 344

12 Wear ring 2" 1 662 111 342

12 Wear ring 3Ѕ" 1 662 111 343

13 Rubber damper 2 662 111 259

14 Tensioning bar 2 662 111 258

15 Bearing 2 662 111 264

16 Tension spring 1 662 126 410

16a Tension spring 1 662 111 130

17 Carabiner hook with chain 1 662 100 574

18 Cap bolt 4 659 112 624

19 Pin 1 662 126 449

19a Hex. bolt 3 659 112 359

19b Cap bolt 3 659 112 358

20 Washer 2 662 126 175

22 Grease nipple 2 662 126 224

23 Hex. bolt 8 659 112 510

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

28 Hammer rivet 1 662 126 151

32 Fork 1 662 111 314

35 Safety flange 1 662 111 281

Tube clamp (not shown) 1 662 111 345

Plug for lubrication tube (not shown) 1 662 111 346

65

Spare parts SK-HD 38.36 up to serial number 40001300

Please note: Spare parts for serial numbers 40001055-1144, 40001195-1216

see new spare part list from serial number 40001301.

66

Item Component (price per piece) Serial no. Pcs. Disp. Order no.

2" Repair kit for locking mechanism and bearings (9,11,12,13,15,18,23) 662 101 453

2" Repair kit for locking mechanism (9,11,12,18) 662 101 455

2" Repair kit for bearings (13,15,23) 662 101 457

2" Repair kit for wear ring (12,18) 662 101 563

3Ѕ" Repair kit for locking mechanism and bearings (9,11,12,13,15,18,23) 662 101 454

3Ѕ" Repair kit for locking mechanism (9,11,12,18) 662 101 456

3Ѕ" Repair kit for bearings (13,15,23) 662 101 457

3Ѕ"Repair kit for wear ring (12,18) 662 101 564

Conversion kit from 3Ѕ" to 2" (9,12,18,24,26) 662 101 431

Conversion kit from 2" to 3Ѕ" (9,12,18,24,26) 662 101 432

1 Fifth wheel plate 1 662 111 254

2 Operating handle 1 662 111 276

4 Mounting bracket 150 mm 2 662 111 293

6 Mounting bracket 190 mm 2 662 111 256

9 Coupler jaw, 2" 1 662 111 249

9 Coupler jaw, 3Ѕ" 1 662 111 247

10 Locking hook 1 662 111 239

10a Cam 1 662 111 317

10b Lubrication tube 1 662 130 118

11 Pin 2 662 111 316

12 Wear ring 2" 1 662 111 319

12 Wear ring 3Ѕ" 1 662 111 250

13 Rubber damper 2 662 111 259

14 Tensioning bar 2 662 111 258

15 Bearing 2 662 111 264

16 Tension spring 1 662 126 410

16a Tension spring 1 662 111 130

17 Carabiner hook with chain 1 662 100 574

18 Cap bolt 4 659 112 363

19 Pin 1 662 126 449

19a Hex. bolt 651711 - ... 3 662 126 172

19a Hex. bolt 0 - 651710 5 662 126 172

19b Cap bolt 651711 - ... 3 659 112 358

20 Washer 2 662 126 175

22 Grease nipple 2 662 126 224

23 Hex. bolt 8 659 112 510

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

28 Hammer rivet 1 662 126 151

29 Lubrication tube 1 662 111 289

30 Lock nut 2 662 126 176

31 Eyebolt 2 662 126 465

32 Fork 1 662 111 314

35 Safety flange 1 662 111 281

67

SK-HD 38.36 G (off-road use)

The cast 36t heavy duty fifth wheel

• Suitable for off-road use with double oscillation

• Max. tilt ± 7° around the longitudinal axis

• Simple and safe handling

• 5-stage wear adjustment

• Quick conversion from 3Ѕ" to 2" and vice versa

• Suitable for steering wedge applications

Technical data

Type Lock size Ohveiegrhaltl D-value Imlpooasded Weight inAcnlignlaetioofn Order no.

inch mm kN t kg degree (w1/w2)

SK-HD 38.36 G 3Ѕ" 290 260 36 272 17° / 14° 662 111 088

SK-HD 38.36.2 G 2" 290 162 23 272 17° / 14° 662 111 089

Dimensions

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

68

Spare parts SK-HD 38.36 G from serial number 40001301

Please note: Also applies for serial numbers 40001055-1144, 40001195-1216

69

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism 3Ѕ" (9,11,12,18) 662 101 709

Repair kit for bearing sub-assembly 3 Ѕ" (73,74,78,79,80,81,84,85,86) 662 101 487

Repair kit for locking mechanism 2" (9,11,12,18) 662 101 708

Repair kit for bearing sub-assembly 2" (73,74,78,79,80,81,84,85,86) 662 101 487

Locking mechanism kit (55, 56, 57, 58, 59) 662 111 313

Conversion kit 3Ѕ" to 2" (9,12,18,24,26) 662 101 704

Conversion kit 2" to 3Ѕ" (9,12,18,24,26) 662 101 705

1 Fifth wheel plate 1 662 111 261

2 Operating handle 1 662 111 276

9 Coupler jaw assembly 3Ѕ" 1 662 111 247

9 Coupler jaw assembly 2" 1 662 111 249

10 Locking hook assembly 1 662 111 239

10a Cam complete 1 662 111 317

10b Lubrication tube assembly 2 659 144 106

11 Pin 2 662 111 347

12 Wear ring 3Ѕ" 1 662 111 343

12 Wear ring 2" 1 662 111 342

16 Tension spring 1 662 126 410

16a Tension spring 1 662 111 130

17 Carabiner hook with chain 3 662 100 574

18 Cap screw 4 659 112 624

19 Pin 1 662 126 449

19a Hex. bolt 2 659 112 359

20 Washer 1 662 126 175

22 Grease nipple 2 662 126 224

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

28 Hammer rivet 1 662 126 151

35 Safety flange 1 662 111 281

55 Operating handle 2 662 111 297

56 Stopper 2 662 111 296

57 Counter sink screw 4 662 100 371

58 Locking plate 2 662 111 298

59 Cap bolt 2 662 126 155

70 Mounting bracket 2 662 111 299

71 Rocker arm 1 662 111 303

72 Trunnion pin 1 662 111 306

73 Bearing sleeve 4 662 111 300

74 O-ring 6 662 111 301

75 Spacing washer 4 659 122 075

76 Plate 1 662 111 304

77 Counterplate 1 662 111 307

78 Locking plate 1 662 111 305

79 Locking plate 2 662 111 308

80 Hex. bolt 4 662 111 203

81 Hex. bolt 2 659 112 320

82 Circlip 2 662 111 302

83 Spacing washer 2 659 122 074

84 Cylindrical notched pin 8 662 111 311

85 Grease nipple assembly 1 662 111 312

86 Grease nipple 6 662 126 224

Complete base assembly (not shown) 662 111 096

70

Spare parts SK-HD 38.36 G up to serial number 40001300

Please note: Spare parts for serial numbers 40001055-1144, 40001195-1216 see new spare part list from serial

number 40001301 on previous pages

71

Item Component (price per piece) Pcs. Disp. Order no.

Repair kit for locking mechanism 3Ѕ" (9,11,12,18) 662 101 456

Repair kit for bearing sub-assembly 3 Ѕ" (73,74,78,79,80,81,84,85,86) 662 101 487

Repair kit for locking mechanism 2" (9,11,12,18) 662 101 455

Repair kit for bearing sub-assembly 2" (73,74,78,79,80,81,84,85,86) 662 101 487

Locking mechanism kit (55, 56, 57, 58, 59) 662 111 313

Conversion kit 2" to 3Ѕ" 662 101 432

Conversion kit 3Ѕ" to 2" 662 101 431

1 Fifth wheel plate 1 662 111 261

2 Operating handle 1 662 111 276

9 Coupler jaw assembly 3Ѕ" 1 662 111 247

9 Coupler jaw assembly 2" 1 662 111 249

10 Locking hook assembly 1 662 111 239

10a Cam complete 1 662 111 322

10b Lubrication tube 1 662 130 118

11 Pin 2 662 111 316

12 Wear ring 3Ѕ" 1 662 111 250

12 Wear ring 2" 1 662 111 319

16 Tension spring 1 662 126 410

16a Tension spring 1 662 111 130

17 Carabiner hook with chain 3 662 100 574

18 Cap screw 4 659 112 363

19 Pin 1 662 126 449

19a Hex. bolt 5 662 126 172

20 Washer 1 662 126 175

22 Grease nipple 2 662 126 224

24 Type plate 1 659 120 380

26 Rivet 2 662 126 173

28 Hammer rivet 1 662 126 151

29 Lubrication tube 1 662 111 289

30 Lock nut 2 662 126 176

31 Eyebolt 2 662 126 465

35 Safety flange 1 662 111 281

55 Operating handle 2 662 111 297

56 Stopper 2 662 111 296

57 Counter sink screw 4 662 100 371

58 Locking plate 2 662 111 298

59 Cap bolt 2 662 126 155

Complete base assembly (70-86) 662 111 096

70 Mounting bracket 2 662 111 299

71 Rocker arm 1 662 111 303

72 Trunnion pin 1 662 111 306

73 Bearing sleeve 4 662 111 300

74 O-ring 6 662 111 301

75 Spacing washer 4 659 122 075

76 Plate 1 662 111 304

77 Counterplate 1 662 111 307

78 Locking plate 1 662 111 305

79 Locking plate 2 662 111 308

80 Hex. bolt 4 662 111 203

81 Hex. bolt 2 659 112 320

82 Circlip 2 662 111 302

83 Spacing washer 2 659 122 074

84 Cylindrical notched pin 8 662 111 311

85 Grease nipple assembly 1 662 111 312

86 Grease nipple 6 662 126 224

72

FW0E70

The heavy duty fifth wheel with max. 36t vertical load

• Heavy duty fifth wheel for general on- and off-road

applications where higher capacities are required.

• Available with locks for 3Ѕ" and 2" king pins.

• High strength cast steel construction, minimum

operating temperature -40° C.

• Forged, heat treated steel locks, for maximum

strength and durability.

• Manufactured in accordance with DIN 74081 and

DIN 74084 standards.

• Suitable for all types of rear axle steering.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

FW0E70-03-TP 3Ѕ" toponpllyate 36 240 148 0 FW0E70-03-TP

FW0E70-02-TP 2" toponpllyate 30 170 142 0 FW0E70-02-TP

FW0E70-03-200 3Ѕ" 200 36 240 184 0 FW0E70-03-200

FW0E70-02-200 2" 200 30 170 184 0 FW0E70-02-200

• * * D-Value of king pin to be used must also be suitable for the tractor / trailer combination

• Type Approval No.: e11 00-000050 - 2" Version

• Type Approval No.: e11 00-000051 - 3Ѕ" Version

Dimensions

73

Spare parts FW0E70

Item Component (price per piece) Pcs. Order no.

Lock repair kit (2") RS-91105

Lock repair kit (3Ѕ") RS-91106

Full overhaul kit (2") RS-91107

Full overhaul kit (3Ѕ") RS-91108

Cushion kit RS-91109

1 Fifth wheel top plate - 2" king pin 1 XA-71-DAE

1A Fifth wheel top plate - 3Ѕ" king pin 1 XA-71-OAE

2 Cotter pin 1/4" x 2" 1 XB-5

3 Lock pin 1 XA-1016-C-KTL

4 Cotter pin 1/4" x 2.5" 1 XB-09153

5 Lock pin 2 XA-FW-108-D-15-KTL

6 Lock set for 2" king pin 1 XA-FW-104-D-KTL

6A Lock set for 3Ѕ" king pin 1 XA-FW-104-03-KTL

7 Spring 1 CA-FW-128

8 Cotter pin 1/8" x1" 1 XB-16

9 Secondary lock release handle 1 XA-08783

10 Secondary lock arm 1 XA-FW-137-2-KTL

11 Spring 1 XB-1028-2

12 Hex head cap srew 1/2" - 20 x 1.75" 1 XB-2083

13 Plain washer 1 XB-T-49

14 Hex lock nit 1/2" - 20 1 XB-T-69-A

15 Release lever 1 XA-1005-FH-KTL

16 Release handle 1 XA-1117-H-KTL

17 Plunger 1 XA-1104-KTL

18 Compression spring (red) 2 XB-1007

19 Jam nut 1" - 14 1 XB-04473

Spare parts FW0E70

Item Component (price per piece) Pcs. Order no.

Lock repair kit (2") RS-91105

Lock repair kit (3Ѕ") RS-91106

Full overhaul kit (2") RS-91107

Full overhaul kit (3Ѕ") RS-91108

Cushion kit RS-91109

1 Fifth wheel top plate - 2" king pin 1 XA-71-DAE

1A Fifth wheel top plate - 3Ѕ" king pin 1 XA-71-OAE

2 Cotter pin 1/4" x 2" 1 XB-5

3 Lock pin 1 XA-1016-C-KTL

4 Cotter pin 1/4" x 2.5" 1 XB-09153

5 Lock pin 2 XA-FW-108-D-15-KTL

6 Lock set for 2" king pin 1 XA-FW-104-D-KTL

6A Lock set for 3Ѕ" king pin 1 XA-FW-104-03-KTL

7 Spring 1 CA-FW-128

8 Cotter pin 1/8" x1" 1 XB-16

9 Secondary lock release handle 1 XA-08783

10 Secondary lock arm 1 XA-FW-137-2-KTL

11 Spring 1 XB-1028-2

12 Hex head cap srew 1/2" - 20 x 1.75" 1 XB-2083

13 Plain washer 1 XB-T-49

14 Hex lock nit 1/2" - 20 1 XB-T-69-A

15 Release lever 1 XA-1005-FH-KTL

16 Release handle 1 XA-1117-H-KTL

17 Plunger 1 XA-1104-KTL

18 Compression spring (red) 2 XB-1007

19 Jam nut 1" - 14 1 XB-04473

74

Item Component (price per piece) Pcs. Order no.

20 Spring washer 1 XB-10327

21 Socket head cap screw 1 XB-09407

22 Lock nut 5/8" - 11 1 XB-9174

23 Adjustment wedge 1 XB-3123-1-KTL

24 Compression spring 1 XB-403-KTL

25 Bushing 1 XB-02949

26 Lube fitting (90°) 1 XB-0769

27 Lube fitting (90°) 1 XB-H-38-A

28 Lube fitting 2 XB-H-38

29 Bushing 2 XB-0012-3

30 Pivot pin 2 XE-02759-KTL

31 Hex lock nut 2 32001

32 Bolt 2 31041

36 Adjusting block 1 XA-05768-1

37 Brackets for 200mm height 2 XD-05518-KTL

75

FW2E70

The sliding heavy duty fifth wheel with 34t vertical

load

• Sliding fifth wheel with heavy duty top plate

FW0E70.

• Available with locks for 3Ѕ" and 2" king pins.

• Standard travel length from 272 up to 1671mm, fifth

wheel height 229mm and slide plate width of

940mm.

• Fifth wheel adjustable in 38mm increments.

• Locking plungers adjustable for wear.

• Locking with air release.

Technical data

Type Lock size Imlpooasded D-value Weight

inch t kN kg

max. 85 km/h 2" 34 165 80000

max. 85 km/h 3Ѕ" 34 200 80000

max. 70 km/h 3Ѕ" 34 240 80000

max. 60 km/h 3Ѕ" 34 240 100000

max. 45 km/h 3Ѕ" 34 240 110000

• The load limits given are vaild for operation on paved roads and under conditions prevailing in Europe. For alternative conditions please counsult us.

• Gross combination weight and D-Value limited accordinging to maximum operating speed - see table below for details.

Dimensions

76

Spare parts FW2E70

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

Item Component (price per piece) Pcs. Order no.

Air control kit (Pos. 1-9) 1 RK2500-10-A

1 Switch assembly 1

2 Elbow fitting 1

3 Strainght fitting 1

4 Air coil 1

5 Elbow fitting 1

6 Bulkhead fitting 1

7 elbow fitiing 1

8 Tubing (9 metre coil) 1

9 Cable tie 5

Spare parts FW2E70

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

Item Component (price per piece) Pcs. Order no.

Air control kit (Pos. 1-9) 1 RK2500-10-A

1 Switch assembly 1

2 Elbow fitting 1

3 Strainght fitting 1

4 Air coil 1

5 Elbow fitting 1

6 Bulkhead fitting 1

7 elbow fitiing 1

8 Tubing (9 metre coil) 1

9 Cable tie 5

Spare parts FW2E70

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

Item Component (price per piece) Pcs. Order no.

Air control kit (Pos. 1-9) 1 RK2500-10-A

1 Switch assembly 1

2 Elbow fitting 1

3 Strainght fitting 1

4 Air coil 1

5 Elbow fitting 1

6 Bulkhead fitting 1

7 elbow fitiing 1

8 Tubing (9 metre coil) 1

9 Cable tie 5

Part number system

3Ѕ“

77

Notice

78

Notice

79

UP TO 74T

IMPOSED LOAD

HEAVY DUTY

FIFTH WHEEL

80

FW0100

The 45t extra heavy duty fifth wheel in 2" and 3Ѕ"

version.

• 2" or 3Ѕ" extra heavy duty fifth wheel

manufactured from high strength cast steel,

designed for the most demanding applications.

• The high strength , lock system is manufactured

from high quality forget and heat-treated

components.

• Solid trunnion shaft serves as a torsion bar between

the brackets for extremely high vertical loads.

• Minimum operating temperature -40° C.

• Suitable for rear axle steering systems, high steering

accuracy due to minimal radial movement.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

FW0100-03 3Ѕ" toponpllyate 45 240 159 0 FW0100-03

FW0100-02 2" toponpllyate 45 164 159 0 FW0100-02

FW0100-O 3Ѕ" 270 45 240 272 0 FW0100-O

FW0100-OC 3Ѕ" 230 45 240 268 0 FW0100-OC

FW0100-D 2" 270 45 165 272 FW0100-D

FW0100-DC 2" 230 45 165 268 FW0100-DC

Dimensions

81

Spare parts FW0100

Item Component (price per piece) Pcs. Order no.

Lock repair kit (2") RK-65024

Lock repair kit (3Ѕ") RK-65024-1

Full overhaul kit (2") RK-65012

Full overhaul kit (3Ѕ") RK-65013

1 Fifth wheel top plate - 2" king pin 1 XA-101-D

1A Fifth wheel top plate - 3Ѕ" king pin 1 XA-101-O

2 Cotter pin 1/4" x 2" 1 XB-5

3 Lock pin 1 XA-1016-C-KTL

4 Cotter pin 1/4" x 2.5" 1 XB-T-60

5 Lock pin 2 XA-FW-108-D-1

6 Lock set for 2" king pin 1 XA-FW-104-D

6A Lock set for 3Ѕ" king pin 1 XA-FW-104-03

7 Spring 1 CA-FW-128

8 Cotter pin 1/8" x1" 1 XB-16

9 Secondary lock release handle 1 XA-FW-138

10 Secondary lock arm 1 XA-FW-137-2

11 Spring 1 XB-1028-2

12 Hex head cap srew 1/2" - 20 x 1.75" 1 XB-2083

13 Plain washer 1 XB-T-49

14 Hex lock nit 1/2" - 20 1 XB-T-69-A

15 Release lever 1 XA-1005-FDS

16 Release handle 1 XA-1117-13

17 Plunger 1 XA-1104

18 Compression spring (red) 2 XB-1007

19 Jam nut 1" - 14 1 XB-04473

20 Socket head cap screw 1 XB-2001

Spare parts FW0100

Item Component (price per piece) Pcs. Order no.

Lock repair kit (2") RK-65024

Lock repair kit (3Ѕ") RK-65024-1

Full overhaul kit (2") RK-65012

Full overhaul kit (3Ѕ") RK-65013

1 Fifth wheel top plate - 2" king pin 1 XA-101-D

1A Fifth wheel top plate - 3Ѕ" king pin 1 XA-101-O

2 Cotter pin 1/4" x 2" 1 XB-5

3 Lock pin 1 XA-1016-C-KTL

4 Cotter pin 1/4" x 2.5" 1 XB-T-60

5 Lock pin 2 XA-FW-108-D-1

6 Lock set for 2" king pin 1 XA-FW-104-D

6A Lock set for 3Ѕ" king pin 1 XA-FW-104-03

7 Spring 1 CA-FW-128

8 Cotter pin 1/8" x1" 1 XB-16

9 Secondary lock release handle 1 XA-FW-138

10 Secondary lock arm 1 XA-FW-137-2

11 Spring 1 XB-1028-2

12 Hex head cap srew 1/2" - 20 x 1.75" 1 XB-2083

13 Plain washer 1 XB-T-49

14 Hex lock nit 1/2" - 20 1 XB-T-69-A

15 Release lever 1 XA-1005-FDS

16 Release handle 1 XA-1117-13

17 Plunger 1 XA-1104

18 Compression spring (red) 2 XB-1007

19 Jam nut 1" - 14 1 XB-04473

20 Socket head cap screw 1 XB-2001

1 XA-101-D 1 Sattelplatte - 2" K цnigszapfen

1O-10 1-AXA1S attelplatte - 3,5" K цnigszapfen

2 XB-5 1 Splint 1/4" x 2"

3 XA-1016-C 1 VerschluЯbolzen

4 XB-T-60 1 Splint 1/4" x 2.5"

5 XA-FW-108-D-1 1 VerschluЯbolzen

6 XA-FW-104-D 1 VerschluЯSatz f ьr 2" K цnigszapfen

6A XA-FW-104-03 1 VerschluЯSatz f ьr 3,5" K цnigszapf.

7 XA-FW-128 1 Feder

8 XB-16 1 Splint 1/8" x 1"

9 XA-FW-138 1 Handhebel Zusatzsicherung

10 XA-FW-137-2 1 Sperrarm Zusatzsicherung

11 XB-1028-2 1 Druckfeder

12 XB-2083 1 Sechskantschraube 1/2" - 20 x 1.75"

13 XB-T-49 1 Unterlegscheibe

14 XB-T-69-A 1 Sicherungsmutter 1/2" - 20

15 XA-1005-FDS 1 Ausrьckhebel

16 XA-1117-13 1 Handhebel

17 XA-1104 1 Verriegelungsschieber

18 XB-1007 1 Druckfeder (rot)

19 XB-04473 1 Sicherungsmutter 1" - 14

20 XB-2001 1 Innensechskantschraube

21 XB-HNH-58-C 1 Selbstsichernde Mutter 5/8" - 11

22 XD-3123-1 1 Einstellkeil

23 XB-403 1 Druckfeder

24 XB-02949 1 Buchse

25 XB-767-C 2 Schmiernippel (45 °)

*26 XB-H-38 2 Schmiernippel

*27 XA-FW-106 1 Achse

*28 XA-FW-113-D 2 Klemmst ьck fьr Achse

*29 XB-03371 4 Unterlegplatte

*30 XB-772 2 Sechskantschraube 3/4" - 16 x 3"

*31 XB-PW-1316-112 2 Unterlegscheibe

*32 XB-769 2 Mutter 3/4" - 16

*33 XA-FW-103 2 Achslager

*34 XA-FW-102 2 Lagerbock - f ьr 270 mm Bauh цhe

*34A XA-FW-102-C 2 Lagerbock - f ьr 230 mm Bauh цhe

*35 XA-FW-107 2 Buchse

*36 XB-08914 8 Schraube 7/8"-14x4"

*37 XB-T-307 8 Sicher.mutter 7/8"-14

*36A XB-FW-109 8 Sechskantschraube 1"- 8 x 4"

*37A XB-C-41 8 Sicherungsmutter  1"- 8

*38 TF-0110 1 Kцnigszapfen Lehre

*39 TF-TLN-5001 1 2" K цnigszapfen Verschlu ЯTester

*39A TF-TLN-1500 1 3,5" K цnigszapfen Verschlu ЯTester

40 XA-05768 1 Einstellkeil

* Nicht im Reparatur Satz enthalten

}

Pos. Teil Nr. Anzahl Teil Bezeichnung Pos. Teil Nr. Anzahl  Teil Bezeichnung

Nach 8/97

Lochma Яprьfen

} 8V/o9r 7

RK-65012  Reparatursatz, kpl. - 2" K цnigszapfen

RK-65013  Reparatursatz, kpl. - 3,5" K цnigszapfen

RK-65024  VerschluЯReparatur Satz - 2" K цnigsz.

RK-65024-1  VerschluЯReparatur Satz -3,5"K цnigsz.

*

*

ZUBEH ЦR

erf.

erf.

erf.

erf.

erf.

SAF-HOLLAND GmbH

HauptstraЯe 26

D-63856 Bessenbach, Germany

Phone: +49 (0) 6095-301302

Fax: +49 (0) 6095-301200

HOLLAND EUROHITCH Ltd.

Hoo Farm Ind. Est. Worcester Rd.

Kidderminster, Worcs. DY11 7RA, UK

Phone: +44 (0) 1562-732010

Fax: +44 (0) 1562-732020

HOLLAND EUROPE GmbH

Altenkamp 9, D-33758

Schloss Holte-Stukenbrock, Germany

Phone: +49 (0) 5207-89560

Fax: +49 (0) 5207-895656

Copyright      July 2007-SAF-HOLLAND. All information contained in this document is correct at time of copyright and is subject to change without notification all rights reserved

www.safholland.com XL-FW1026-02-G

82

Item Component (price per piece) Pcs. Order no.

21 Lock nut 5/8" - 11 1 XB-HNH-58-C

22 Adjustment wedge 1 XB-3123-1

23 Compression spring 1 XB-403

24 Bushing 1 XB-02949

25 Lube fitting (45°) 2 XB-0767-C

26 Lube fitting 2 XB-H-38

27 Trunnion shaft 1 XA-FW-106

28 Trunnion shaft clamp 2 XA-FW-113-D

29 Shims 4 XB-03371

30 Hex bolt 3/4" - 16x3" 2 XB-772

31 Washer 2 XB-PW-1316-112

32 Nut 3/4" - 16 2 XB-769

33 Trunnion shaft bracket 2 XA-FW-103

34 Mounting bracket - 10.5" height 2 XA-FW-102

34A Mounting bracket - 9" height 2 XA-FW-102-C

35 Bushing 2 XA-FW-107

36 Bolt 7/8" - 14x4" (after 8/97 check hole size) 8 XB-08914

37 Lock nut 7/8" - 14 (after 8/97 check hole size) 8 XB-T-307

36A Hex head cap bolt 1" -8 x 4" (piror 8/97) 8 XB-FW-109

37A Locknut 1" - 8 (piror 8/97) 8 XB-C-41

40 Adjusting block 1 XA-05768

83

FW0165

The severe duty fifth wheel wit max. 74t vertical load.

• 2" or 3Ѕ" extra heavy duty fifth wheel manufactured

from high strength cast steel, designed for the most

demanding applications.

• The high strength lock system is manufactured from

high quality forged and heat-treated components.

• Extremely high vertical load capability.

• Minimum operating temperature -40° C.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

FW0165-0091 3Ѕ" 270 74 240 302 0 FW0165-0091

FW0165-0091-1 2" 270 74 165 295 0 FW0165-0091-1

Dimensions

84

Spare parts FW0165

Item Component (price per piece) Pcs. Order no.

Lock repair kit (2") RK-65024

Lock repair kit (3Ѕ") RK-65024-1

Full overhaul kit (2") RK-65012

Full overhaul kit (3Ѕ") RK-65013

1 Fifth wheel top plate - 2" king pin 1 XA-115-1

1A Fifth wheel top plate - 3Ѕ" king pin 1 XA-115

2 Cotter pin 1/4" x 2" 1 XB-5

3 Lock pin 1 XA-1016-C

4 Cotter pin 1/4" x 2.5" 1 XB-T-60

5 Lock pin 2 XA-FW-108-D-1

6 Lock set for 2" king pin 1 XA-FW-104-D

6A Lock set for 3Ѕ" king pin 1 XA-FW-104-03

7 Spring 1 CA-FW-128

8 Cotter pin 1/8" x1" 1 XB-16

9 Secondary lock release handle 1 XA-FW-138

10 Secondary lock arm 1 XA-FW-137-2

11 Spring 1 XB-1028-2

12 Hex head cap srew 1/2" - 20 x 1.75" 1 XB-2083

13 Plain washer 1 XB-T-49

14 Hex lock nit 1/2" - 20 1 XB-T-69-A

15 Release lever 1 XA-1005-FDS

16 Release handle 1 XA-1117-13

17 Plunger 1 XA-1104

18 Compression spring (red) 2 XB-1007

Spare parts FW0165

Item Component (price per piece) Pcs. Order no.

Lock repair kit (2") RK-65024

Lock repair kit (3Ѕ") RK-65024-1

Full overhaul kit (2") RK-65012

Full overhaul kit (3Ѕ") RK-65013

1 Fifth wheel top plate - 2" king pin 1 XA-115-1

1A Fifth wheel top plate - 3Ѕ" king pin 1 XA-115

2 Cotter pin 1/4" x 2" 1 XB-5

3 Lock pin 1 XA-1016-C

4 Cotter pin 1/4" x 2.5" 1 XB-T-60

5 Lock pin 2 XA-FW-108-D-1

6 Lock set for 2" king pin 1 XA-FW-104-D

6A Lock set for 3Ѕ" king pin 1 XA-FW-104-03

7 Spring 1 CA-FW-128

8 Cotter pin 1/8" x1" 1 XB-16

9 Secondary lock release handle 1 XA-FW-138

10 Secondary lock arm 1 XA-FW-137-2

11 Spring 1 XB-1028-2

12 Hex head cap srew 1/2" - 20 x 1.75" 1 XB-2083

13 Plain washer 1 XB-T-49

14 Hex lock nit 1/2" - 20 1 XB-T-69-A

15 Release lever 1 XA-1005-FDS

16 Release handle 1 XA-1117-13

17 Plunger 1 XA-1104

18 Compression spring (red) 2 XB-1007

85

Item Component (price per piece) Pcs. Order no.

19 Jam nut 1" - 14 1 XB-04473

20 Socket head cap screw 1 XB-2001

21 Lock nut 5/8" - 11 1 XB-HNH-58-C

22 Adjustment wedge 1 XB-3123-1

23 Compression spring 1 XB-403

24 Bushing 1 XB-02949

25 Lube fitting (45°) 2 XB-0767-C

26 Lube fitting 2 XB-H-38

27 Trunnion shaft 1 XA-FW-106

28 Trunnion shaft clamp 2 XA-FW-113-D

29 Shims 4 XB-03371

30 Hex bolt 3/4" - 16x3" 2 XB-772

31 Washer 2 XB-PW-1316-112

32 Nut 3/4" - 16 2 XB-769

33 Trunnion shaft bracket 2 XA-FW-103

34 Mounting bracket -270mm 2 XA-FW-102

35 Bushing 2 XA-FW-107

36 Bolt 7/8" - 14x4" (after 8/97 check hole size) 8 XB-08914

37 Lock nut 7/8" - 14 (after 8/97 check hole size) 8 XB-T-307

36A Hex head cap bolt 1" -8 x 4" (piror 8/97) 8 XB-FW-109

37A Locknut 1" - 8 (piror 8/97) 8 XB-C-41

40 Adjusting block 1 XA-05768

86

Notice

87

TERMINAL TRACTOR

HEAVY DUTY

FIFTH WHEEL

88

FW3510-TR

The fifth wheel for terminal tractors

• High strength cast steel construction - permitted

operating temperature to - 40° C.

• Top surface machined to improve wear, steering and

fit with trailer plate. Patented grease groove pattern

for improved wear and durability and prepared for

central lubrication system.

• Air operated lock release mechanism.

• Locks require only 140 kg to couple

• Available with brackets for electronic sensors to

indicate locks closed.

Technical data

Type Imlpooasded Weight Order no.

t kg

FW3510-TR 36 120 FW3510-TR

• Specification standard version

• The load limits given are vaild for operation with speed limited to 35km/h maximum and for use on well maintained roadways and yards within

distribution depots and dockyard areas.

Type Imlpooasded D-value Weight Order no.

t kN kg

FW3510-TR-EG 20 150 121 FW3510-TR-EG

• Specification with optional manual secondary lock

• EC approved 94/20/EG

• Type approval no.: e1*94/20*0812

Dimensions

89

Spare parts FW3510-TR

Item Component (price per piece) Order no.

Full overhaul kit, does not include items 26-31 RK-3510-TR

Overhaul kit (Pos. 1-25, does not include items 10, 20, 21) RK-3510-TR-2

Lock repair kit ( Pos. 14-17 and 19) RS-91103

Front lock grease tube kit RS-91110

1 Camplate XA-10099

2 Bolte XB-10035

3 Roller XA-1507-1

4 Washer XB-07431-KTL

5 Camplate spacer XA-09040-KTL

6 Yoke spring XB-1505-KTL

7 Yoke shaft XA-1706-1

8 Yoke XA10094

9 Washer XB-76004

10 Locknut (alt. part 32001) XB-HLN-M12-Z

11 Bolt 31039

12 Roller XA-1029

13 Spring XB-07628-KTL

14 Lock set XA-07296-KTL

15 Lock pin XA-E-60043

16 Washer 33027

17 Hex nut 32027

18 Cable tab (brass) XA-10096

19 45° lube fitting 38026

20 Bolt 31036

21 Air cylinder assembly XA-3542-R-T

Spare parts FW3510-TR

Item Component (price per piece) Order no.

Full overhaul kit, does not include items 26-31 RK-3510-TR

Overhaul kit (Pos. 1-25, does not include items 10, 20, 21) RK-3510-TR-2

Lock repair kit ( Pos. 14-17 and 19) RS-91103

Front lock grease tube kit RS-91110

1 Camplate XA-10099

2 Bolte XB-10035

3 Roller XA-1507-1

4 Washer XB-07431-KTL

5 Camplate spacer XA-09040-KTL

6 Yoke spring XB-1505-KTL

7 Yoke shaft XA-1706-1

8 Yoke XA10094

9 Washer XB-76004

10 Locknut (alt. part 32001) XB-HLN-M12-Z

11 Bolt 31039

12 Roller XA-1029

13 Spring XB-07628-KTL

14 Lock set XA-07296-KTL

15 Lock pin XA-E-60043

16 Washer 33027

17 Hex nut 32027

18 Cable tab (brass) XA-10096

19 45° lube fitting 38026

20 Bolt 31036

21 Air cylinder assembly XA-3542-R-T

90

Item Component (price per piece) Order no.

22 Extension spring (inner) XB-10087-KTL

23 Extension spring (outer) XB-10088-KTL

24 Lube fitting 38009

25 Never-seez lube (not shown) XB-02967

26 Sensor bracket XA-76020-KTL

27 Pocket insert XB-10210

28 Spring XB-2149-KTL

29 Roll pin XB-21-S-500-2750

30 Secondary lock bar XA-3528-KTL

31 Handle-Secondary lock XA-3546

32 Air cylinder clevis XB-76022

91

FW0E70-T

The heavy duty fifth wheel for terminal tractors 12t

gross combination weight (3Ѕ") and 45t vertical load.

• High strength cast steel construction - permitted

operating temperature to -40° C.

• Top surface machined to improve wear, steering and

fit with trailer plate. Patented grease groove pattern

for improved wear and durability.

• Air operated lock release mechanism.

• Can be upgrated for operation at gross combination

weight above 12000 kg subject to operating

conditions and further limitations - contact SAF-

HOLLAND with your requirements.

Technical data

Type Lock size Imlpooasded Weight Order no.

inch t kg

FW0E70-03-T* 3Ѕ" 45 148 FW0E70-03-T

FW0E70-02-T 2" 45 148 FW0E70-02-T

• The load limits given are valid for operation with speed limited to 35 km/h maximum and for use on well maintained roadways and yards within

distribution depots and dockyard areas.

• FW0E70-03-T = Standard version for 3Ѕ" kingpin

• FW0E70-02-T = Version for 2" kingpin available, please contact SAF-HOLLAND for details.

Dimensions

92

Spare parts FW0E70-T

Item Component (price per piece) Pcs. Order no.

1 Lock set - 3Ѕ" 1 XA-FW-104-03-T-KTL

Lock set - 2" 1 XA-FW-104-D-T-KTL

2 Lock nut 1 XB-04473

3 Washer 1 XB-10327

4 Air cylinder 1 XA-2524-R-2

5 Bolt 3 XB-2083

6 Lock nut 3 XB-T-69-A

7 Spring 1 XA-FW-128

8 Lube fitting - 90° 1 XB-0769

9 Cotter pin 1 XB-T-60

10 Lock pin 1 XA-FW-108-D

11 Socket head cap screw 1 XB-09407

12 Spring 1 XB-403-KTL

13 Lock nut 1 XB-HNH-58-C

14 Adjusting wedge 1 XD-3123-1-KTL

15 Spring 1 XB-1007

16 Plunger 1 XA-1104-1

17 Bushing 1 XB-02949

18 Washer 1 XB-T-49

19 Lever 1 XA-60020-KTL

20 Lube fitting 2 XB-H-38

21 Spring 1 XA-60021-KTL

Spare parts FW0E70-T

Item Component (price per piece) Pcs. Order no.

1 Lock set - 3Ѕ" 1 XA-FW-104-03-T-KTL

Lock set - 2" 1 XA-FW-104-D-T-KTL

2 Lock nut 1 XB-04473

3 Washer 1 XB-10327

4 Air cylinder 1 XA-2524-R-2

5 Bolt 3 XB-2083

6 Lock nut 3 XB-T-69-A

7 Spring 1 XA-FW-128

8 Lube fitting - 90° 1 XB-0769

9 Cotter pin 1 XB-T-60

10 Lock pin 1 XA-FW-108-D

11 Socket head cap screw 1 XB-09407

12 Spring 1 XB-403-KTL

13 Lock nut 1 XB-HNH-58-C

14 Adjusting wedge 1 XD-3123-1-KTL

15 Spring 1 XB-1007

16 Plunger 1 XA-1104-1

17 Bushing 1 XB-02949

18 Washer 1 XB-T-49

19 Lever 1 XA-60020-KTL

20 Lube fitting 2 XB-H-38

21 Spring 1 XA-60021-KTL

93

Item Component (price per piece) Pcs. Order no.

22 Bolt M10x25 1 31008

23 Bolt M10x50 1 31032

24 Lock nut 2 32008

25 Washer 2 33023

94

Notice

95

KOMPENSATOR

UP TO 34T

IMPOSED LOAD

SPECIALISED

FIFTH WHEEL

96

FW3540+FW3140

The 2" Kompensator® fifth wheel for maximum 20t

vertical load

• Patented construction for applications where

torsional relief between tractor / trailer is desired,

e.g. tank trailers.

• Considerable stress reduction in the trailer plate,

cargo tank and in the tractor frame.

• Incorporates the rugged cast steel top plate from the

high strenght FW3540/FW3140 fifth wheel for long

life and durability.

• The FW3540/FW3140 fifth wheel improves stability,

axle-weight distribution and tyre life.

• This fifth wheel is recommended for use where trailer

centre of gravity is at or below a maximum of 1m

above the fifth wheel top surface.

• With a D-Value of 135kN suitable for all types of rear

axle steering.

• Manufactured in accordance with DIN 74081 and ISO

3842 standards.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

FW3540-B 0 245 20 150 210 0 FW35040-B

FW3540-B (with rear axle steering) 245 20 135 210 FW3540-B

FW3140-B 245 20 150 210 FW3140-B

FW3140-B (with rear axle steering) 245 20 135 210 FW3140-B

• The load limits given are valid for operation on paved roads and under conditions prevailing in Europe.

• For alternative conditions please consult SAF-HOLLAND.

• Type approval no.: e1*94/20*0200

Dimensions

97

Spare parts FW3540+FW3140

For spare parts for top plate see fifthwheel FW3510 or FW3110

Item Component (price per piece) Pcs. Order no.

Kompensator® frame cpl. ( item 4 not included) 1 XA-40-7743-1

Lockout kit (Pos. 17, 18, 19, 20) 1 RK-01370

1 Kompensator® frame cpl. 1 XA-45-7743-1

2 Shoe Subassembly - incl. part no. 3 2 XA-0024

3 Grease fitting 2 XB-H-38-F

4 Rubber cushion 2 XB-0011

5 Washer 2 XB-PW-1316-112

6 Cushion 2 XB-0009

7 Washer 2 XA-1284-2

8 Compression spring 2 XB-01923

9 Tie bar 1 XA-39

10 Hex lock nut 1/2" -13 4 XB-C-59

11 Lock washer 1/2" 4 XB-T-45-1

12 Shim (as required) 2 XA-0014

13 Bearing plate - RH 1 XA-01998

14 Bearing plate - LH 1 XA-01997

15 45° Grease fitting 4 XB-H-38-C

16 Grease fitting 4 XB-H-38

17 "L" Pin subassembly 2 XA-01429

18 Lockut stop 2 XA-01427

19 Cotter pin 19"x1,25" 2 XB-382

Spare parts FW3540+FW3140

For spare parts for top plate see fifthwheel FW3510 or FW3110

Item Component (price per piece) Pcs. Order no.

Kompensator® frame cpl. ( item 4 not included) 1 XA-40-7743-1

Lockout kit (Pos. 17, 18, 19, 20) 1 RK-01370

1 Kompensator® frame cpl. 1 XA-45-7743-1

2 Shoe Subassembly - incl. part no. 3 2 XA-0024

3 Grease fitting 2 XB-H-38-F

4 Rubber cushion 2 XB-0011

5 Washer 2 XB-PW-1316-112

6 Cushion 2 XB-0009

7 Washer 2 XA-1284-2

8 Compression spring 2 XB-01923

9 Tie bar 1 XA-39

10 Hex lock nut 1/2" -13 4 XB-C-59

11 Lock washer 1/2" 4 XB-T-45-1

12 Shim (as required) 2 XA-0014

13 Bearing plate - RH 1 XA-01998

14 Bearing plate - LH 1 XA-01997

15 45° Grease fitting 4 XB-H-38-C

16 Grease fitting 4 XB-H-38

17 "L" Pin subassembly 2 XA-01429

18 Lockut stop 2 XA-01427

19 Cotter pin 19"x1,25" 2 XB-382

Spare parts FW3540+FW3140

For spare parts for top plate see fifthwheel FW3510 or FW3110

Item Component (price per piece) Pcs. Order no.

Kompensator® frame cpl. ( item 4 not included) 1 XA-40-7743-1

Lockout kit (Pos. 17, 18, 19, 20) 1 RK-01370

1 Kompensator® frame cpl. 1 XA-45-7743-1

2 Shoe Subassembly - incl. part no. 3 2 XA-0024

3 Grease fitting 2 XB-H-38-F

4 Rubber cushion 2 XB-0011

5 Washer 2 XB-PW-1316-112

6 Cushion 2 XB-0009

7 Washer 2 XA-1284-2

8 Compression spring 2 XB-01923

9 Tie bar 1 XA-39

10 Hex lock nut 1/2" -13 4 XB-C-59

11 Lock washer 1/2" 4 XB-T-45-1

12 Shim (as required) 2 XA-0014

13 Bearing plate - RH 1 XA-01998

14 Bearing plate - LH 1 XA-01997

15 45° Grease fitting 4 XB-H-38-C

16 Grease fitting 4 XB-H-38

17 "L" Pin subassembly 2 XA-01429

18 Lockut stop 2 XA-01427

19 Cotter pin 19"x1,25" 2 XB-382

98

Item Component (price per piece) Pcs. Order no.

20 Shackle pin 2 XB-847

21 Dust cover - LH 1 XA-0128-L

22 Dust cover - RH 1 XA-0128-R

99

FW7E40

The heavy duty Kompensator® fifth wheel with 34t

maximum vertical load.

• Patented construction for applications where

torsional relief between tractor / trailer is desired,

e.g. tank trailers.

• Considerable stress reduction in the trailer plate,

cargo tank and in the tractor frame.

• Incorporates the rugged cast steel top plate from the

FW0E70 fifth wheel for long life and high strenght

capabilities.

• The FW0E70 fifth wheel improves stability, axle-

weight distribution and tyre life.

• This fifth wheel is recommended for use where trailer

centre of gravity is at or below a maximum of 1 m

above the fifth wheel top surface.

• Lock system manufactured from high quality forged

and heat-treated components for strenght and

durability

• Manufactured in accordance with DIN 74081 and ISO

3842 standards.

Technical data

Type Lock size Ohveiegrhaltl Imlpooasded D-value Weight inAcnlignlaetioofn Order no.

inch mm t kN kg degree (w1/w2)

FW7E40-A-2 (85km/h) 2" 245 34 165 240 0 FW7E40-A-2

FW7E40-A (85 km/h) 3Ѕ" 245 34 200 240 FW7E40-A

FW7E40-A (70 km/h) 3Ѕ" 245 34 240 240 FW7E40-A

FW7E40-A (60 km/h/) 3Ѕ" 245 34 240 240 FW7E40-A

FW7E40-A (45 km/h) 3Ѕ" 245 34 240 240 FW7E40-A

• Gross combination weight and D-Value limited according to maximum operating speed - see table below for details.

Dimensions

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

100

Spare parts FW7E40

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

Item Component (price per piece) Pcs. Order no.

Kompensator® frame cpl. (item 4 not included) 1 XA-40-7743-1

Lockout kit (Pos. 17, 18, 19, 20) 1 RK-01370

1 Kompensator® frame cpl. 1 XA-45-7743-1

2 Shoe subassembly - incl. part no. 3 2 XA-0024

3 Grease fitting 2 XB-H-38-F

4 Rubber cushion 2 XB-0011

5 Washer 2 XB-PW-1316-112

6 Cushion 2 XB-0009

7 Washer 2 XA-1284-2

8 Compression spring 2 XB-01923

9 Tie bar 1 XA-39

10 Hex lock nut 1/2" -13 4 XB-C-59

11 Lock washer 1/2" 4 XB-T-45-1

12 Shim (as required) 2 XA-0014

13 Bearing plate - RH 1 XA-01998

14 Bearing plate - LH 1 XA-01997

15 45° Grease fitting 4 XB-H-38-C

16 Grease fitting 4 XB-H-38

17 "L" Pin subassembly 2 XA-01429

18 Lockut stop 2 XA-01427

Spare parts FW7E40

Mounting hole pattern according to DIN 74081

Subject to modifications in dimensions and design

Item Component (price per piece) Pcs. Order no.

Kompensator® frame cpl. (item 4 not included) 1 XA-40-7743-1

Lockout kit (Pos. 17, 18, 19, 20) 1 RK-01370

1 Kompensator® frame cpl. 1 XA-45-7743-1

2 Shoe subassembly - incl. part no. 3 2 XA-0024

3 Grease fitting 2 XB-H-38-F

4 Rubber cushion 2 XB-0011

5 Washer 2 XB-PW-1316-112

6 Cushion 2 XB-0009

7 Washer 2 XA-1284-2

8 Compression spring 2 XB-01923

9 Tie bar 1 XA-39

10 Hex lock nut 1/2" -13 4 XB-C-59

11 Lock washer 1/2" 4 XB-T-45-1

12 Shim (as required) 2 XA-0014

13 Bearing plate - RH 1 XA-01998

14 Bearing plate - LH 1 XA-01997

15 45° Grease fitting 4 XB-H-38-C

16 Grease fitting 4 XB-H-38

17 "L" Pin subassembly 2 XA-01429

18 Lockut stop 2 XA-01427

101

Item Component (price per piece) Pcs. Order no.

19 Cotter pin 19"x1,25" 2 XB-382

20 Shackle pin 2 XB-847

21 Dust cover - LH 1 XA-0128-L

22 Dust cover - RH 1 XA-0128-R

102

Notice

103

SLIDERS

TO PERMISSIbLE

AXLE LOADS AND

VEHICLE LENGTHS



SAF-HOLLAND sliders are type approved to 94/20/EG.

Modi̪cations on the slider exclude warranty claims,

the liability for defects and cause also the expiration

of the type approval.

We recommend you to verify the appropriate

installation of the slider SK-V 20 by an

authorised expert.

106

HEAVY DUTY SLIDER SK-V 36

(

8

4

6

)

(600)

  (700)

~



(

9

1

0

)



i

n



p

o

s

i

t

i

o

n



"

u

n

l

o

c

k

e

d

"

(

6

6

0

)

3 x (300) = (900)  4 drilled holes

(1400)

8 x (100) = (800)  9 positions

(75)

(

8

2

0

)

(68)

(58)

(

4

5

6

)

 (65)

(

6

0

)

~



(

5

3

3

)



i

n



p

o
